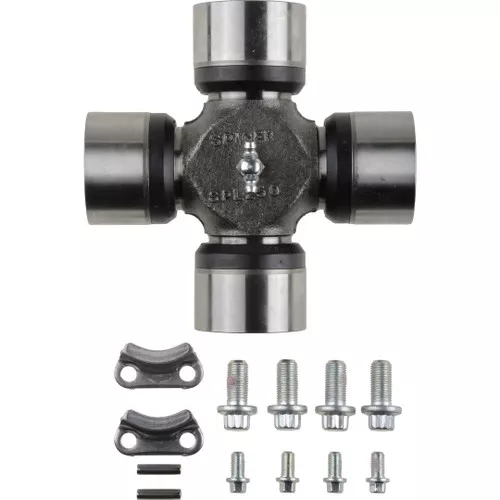

SPL250-3X Dana Spicer SPL250 Series U Joint

Description

SPL250-3X Dana Spicer SPL250 Series U Joint
SPL2503X

Please use the online catalog to select your part numbers

Cross References:
SPL2503X, SPL250-SF3X, S250X, SPL250-LX, 25-SPL250-3X, 6-1250, PSPL250-3X, SPL250X

UPC:

00023913121853

Series:

SPL250

Bearing Cap Diameter (1):

2.362 in

Bearing Cap Diameter (2):

2.362 in

Length A (In):

6.417 in

Length B (In):

6.417 in

Distance Between Bolts (1):

6.417 in

Bearing Cap Diameter A (mm):

60.000 mm

Bearing Cap Diameter B (mm):

60.000 mm

Length A (mm):

163.000 mm

Length B (mm):

163.000 mm

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

OEM Mfg:

Spicer

OEM Series:

SPL250

Type:

SPRTAB Style

Bearing Cap Type:

Round

Snap Ring Included:

Spring Tab/Bolts Included

Snap Ring Type:

Spring Tab

Grease Zerk Included:

Yes

Pre Greased:

No

Grease Fitting Location:

Center of Cross

Greaseable:

Yes

Bearing Cap Type A:

Round

Bearing Cap Type B:

Round

Hardware Included:

No

Mounting Hardware Included:

No

SR(1)Brng Cap to Brng Cap(OSR):

6.417

SR(2)Brng Cap to Brng Cap(OSR):

6.417
