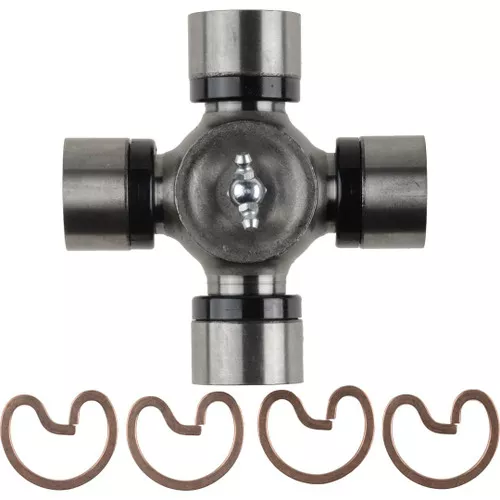

SPL100-1X Dana Spicer U Joint SPL100 SPL90 Series Greasable

Description

SPL100-1X Dana Spicer U Joint SPL100 SPL90 Series Greasable
SPL1001X, 4-1090, 41090, 460, 2506391C91, 5-565X, 5565X, SPL90X, 4C4Z4635EA,

Please use the online catalog to select your part numbers
D1 BEARING CAP DIA:1.625
D2 BEARING CAP DIA:1.625
G1 SNAP RING DIM: 4.957
G2 SNAP RING DIM: 4.957
OEM MFG:SPICER
OEM SERIES:SPL100

Cross References:
SPL90, SPL90X, F4HC4635D, SPL100X, PSPL100-1X, 898, S90X, SPL1001X, 88936232

UPC:

00023913121891

Series:

SPL100

Bearing Cap Diameter (1):

1.625 in

Bearing Cap Diameter (2):

1.625 in

Length A (In):

4.957 in

Length B (In):

4.957 in

Bearing Cap Diameter A (mm):

41.275 mm

Bearing Cap Diameter B (mm):

41.275 mm

Length A (mm):

125.910 mm

Length B (mm):

125.910 mm

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov

OEM Mfg:

Spicer

OEM Series:

SPL100

Type:

OSR Style

Bearing Cap Type:

Round

Snap Ring Included:

Yes

Snap Ring Type:

External

Grease Zerk Included:

Yes

Pre Greased:

No

Grease Fitting Location:

Center of Cross

Greaseable:

Yes

Bearing Cap Type A:

OSR

Bearing Cap Type B:

OSR

Hardware Included:

No

Mounting Hardware Included:

No

SR(1)Brng Cap to Brng Cap(OSR):

4.957

SR(2)Brng Cap to Brng Cap(OSR):

4.957
