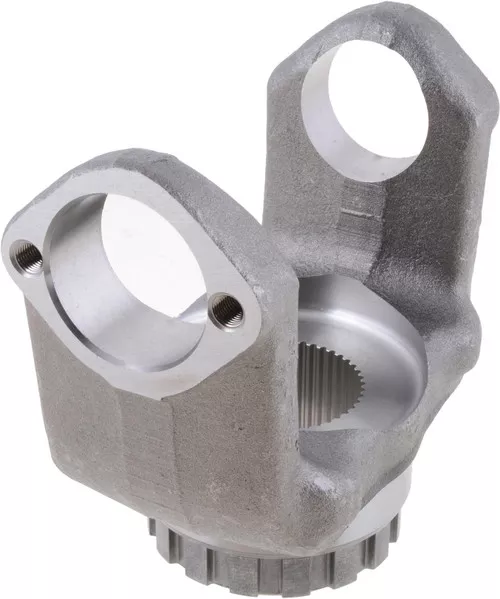

Spicer6.3-4-1281X End Yoke

Description

Spicer 6.3-4-1281X End Yoke
6.341281X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6.3-4-1281X
JOINT SERIES:1760
D DIMENSION:1.94
E DIMENSION:7
YOKE STYLE:Bearing Plate
Q LENGTH THRU HOLE:2.422
R HUB DIAMETER:3.75
S CENTERLINE TO END:5.406
SPLINE COUNT:46
SPLINE OD:2.374
NOTES:Assy includes electronic speedometer gear 231528

Cross References:
Daimler: SP 6.3 4 1281X, Daimler: SP 6.3 4 1281XHP, Dana Commercial Vehicle Service Parts: 176MU52P25, Dana Commercial Vehicle Service Parts: 2104-6341281X, Dana Commercial Vehicle Service Parts: 38MU3419P6, Dana Commercial Vehicle Service Parts: 6.3-4-641, Freightliner Trucks: SP 6.3 4 1281X, Freightliner Trucks: SP 6.3 4 1281XHP, International Harvester (IHC): 6341281X, International Harvester (IHC): D6341281X, International Harvester (IHC): E6341281X, Mack: 176MU52P25, Mack: 2104-6341281X, Mack: 25133929, Mack: 25180009, Mack: 38MU3419P6, Meritor: 176NYS3810, Navistar: 6341281X, Navistar: D6341281X, Navistar: D634641, Navistar: DS6341281X, Navistar: E6341281X, Navistar: E634641, Neapco: N6.3-4-641, Paccar Parts: 6.3-4-1281X, UAP: 6.3-4-1281X, Volvo Cars: 176MU52P25, Volvo Cars: 2104-6341281X, Volvo Cars: 38MU3419P6, Volvo Cars: SP 6341281X, 6.34641, GTY-6857, P6.3-4-1281X, 63-4-1281X, 6857, 6.341281X

UPC:

00023913219543

Series:

1760

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

46

Involute Spline:

Y

Hub Diameter R:

3.750

Length Thru Hole Q:

2.422

Yoke Style:

BP

C/L To End Hub S:

5.406

Assembly:

N

Includes Slinger/Plug:

N

Yoke Bearing Dimension (In) D:

1.938

Major Diameter:

2.374

Outside Yoke Dimension (In) E:

7.000
