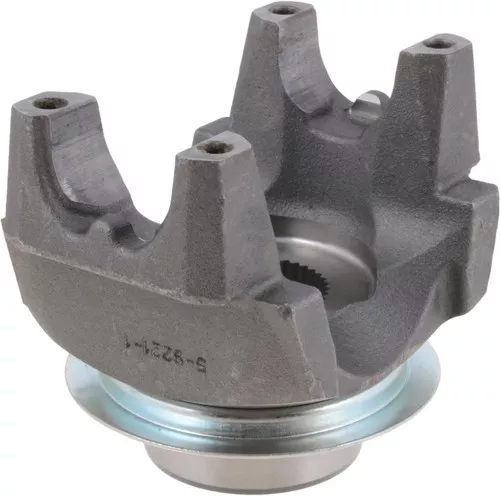

Spicer5-4-9231-1X 1610 Series Half Round Yoke

Description

Spicer 5-4-9231-1X 1610 Series Half Round Yoke
5492311X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

5-4-9231-1X
JOINT SERIES:1610
D DIMENSION:1.875
E DIMENSION:5.312
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.281
R HUB DIAMETER:3
S CENTERLINE TO END:4.875
SPLINE COUNT:39 I
SPLINE OD:2.024
NOTES:

Cross References:
Allison Transmission: 15708534, Daimler: SP 5 4 9231 1X, Daimler: SP 5 4 9231 1XHP, Dana Commercial Vehicle Service Parts: 129043, Freightliner Trucks: SP 5 4 9231 1X, Freightliner Trucks: SP 5 4 9231 1XHP, General Motors: 15708534, International Harvester (IHC): 2039051C91, International Harvester (IHC): 5492311X, International Harvester (IHC): D5492311X, International Harvester (IHC): E5492311X, McNeilus: 1329698, Navistar: 2039051C91, Navistar: 5492311X, Navistar: D5492311X, Navistar: DS5492311X, Navistar: E5492311X, Navistar: ETN0129043, Paccar Parts: 5-4-9231-1X, Peterbilt: 1329698, UAP: 5-4-9231-1X, Volvo Cars: SP 5492311X, P5-4-9231-1X

UPC:

00023913216979

Series:

1610

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

39

Involute Spline:

Y

Hub Diameter R:

3.000

Length Thru Hole Q:

2.281

Yoke Style:

HR

C/L To End Hub S:

4.875

C-Bore Depth:

0.250

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.875

Major Diameter:

2.024

Outside Yoke Dimension (In) E:

5.312
