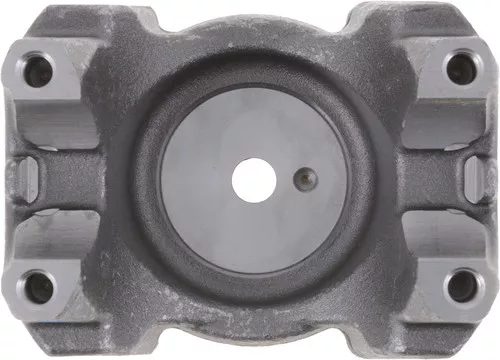

Spicer 90-4-501-1X SPL90 Series Half Round Yoke

Description

Spicer 90-4-501-1X SPL90 Series Half Round Yoke

Cross References:
Blue Bird: 00108884, Blue Bird: 00108884`, Daimler: 680 410 10 28, Daimler: 9045011X, Daimler: F5HS 7089 AA, Daimler: SP 90 4 501 1X, Daimler: SP 90 4 501 1XHP, Dana Commercial Vehicle Service Parts: 100-4-1021-1X, Freightliner Trucks: 680 410 10 28, Freightliner Trucks: 9045011X, Freightliner Trucks: F5HS 7089 AA, Freightliner Trucks: SP 90 4 501 1X, Freightliner Trucks: SP 90 4 501 1XHP, Hino: 37304E0040, Hino: 37324-6520A, Hino: S3732-46520, International Harvester (IHC): 3538335C91, International Harvester (IHC): 9045011X, International Harvester (IHC): D9045011X, International Harvester (IHC): E9045011X, Kenworth: 90-4-501-1X, Mack: 2104-9045011X, Navistar: 3538335C91, Navistar: 9045011X, Navistar: D9045011X, Navistar: DS9045011X, Navistar: E9045011X, Paccar Parts: 90-4-501-1X, UAP: 90-4-501-1X, Volvo Cars: SP 9045011X, Workhorse: W0008151, 90-4-461-1, P90-4-501-1X

UPC:

00023913248864

Series:

SPL90

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

34

Involute Spline:

Y

Hub Diameter R:

2.562

Length Thru Hole Q:

2.750

Yoke Style:

BS

C/L To End Hub S:

5.625

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.625

Major Diameter:

1.790

Outside Yoke Dimension (In) E:

5.375
