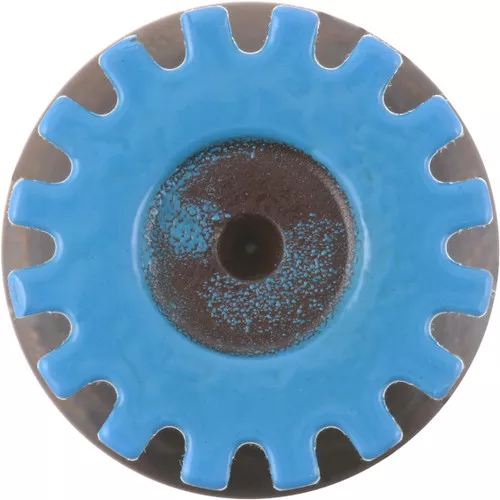

Spicer 8-40-101 1880 Series Splined Stub

Description

Spicer 8-40-101 1880 Series Splined Stub
840101
PLEASE USE THE DANA ONILNE SLIP YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Daimler: 30013-4401, Daimler: SP 8 40 101, Daimler: SP 8 40 101HP, Dana Commercial Vehicle Service Parts: 2104-840101, Dana Commercial Vehicle Service Parts: 61MU38, Dana Commercial Vehicle Service Parts: 8-40-21, Freightliner Trucks: 30013-4401, Freightliner Trucks: SP 8 40 101, Freightliner Trucks: SP 8 40 101HP, International Harvester (IHC): 840101, International Harvester (IHC): D840101, International Harvester (IHC): E840101, Mack: 2104-840101, Mack: 61MU38, McNeilus: 4KP60, Meritor: PS481616, Navistar: 840101, Navistar: D840101, Navistar: DS840101, Navistar: E840101, Neapco: N8-40-101, Paccar Parts: 840101, Paccar Parts: 8-40-101, Peterbilt: 4KP60, Rockwell International: PS48-16-16, UAP: 8-40-101, Volvo Cars: 2104-840101, Volvo Cars: 30013-0001, Volvo Cars: 61MU38, Volvo Cars: SP 840101, P8-40-101

UPC:

00023913212223

Series:

1880

Material:

Steel

Prop 65:

No

Spline Count:

16

Involute Spline:

N

Major Diameter:

3.000

Fits Tube Diameter:

4.500

Butt Diameter:

4.003

End Of Spline To Radius (R):

10.219

End Of Spline To Weld (K):

11.531

Fit Tube Wall Thickness:

.259

Length Of Spline (L):

4.500

Glidecote Spline:

Y
