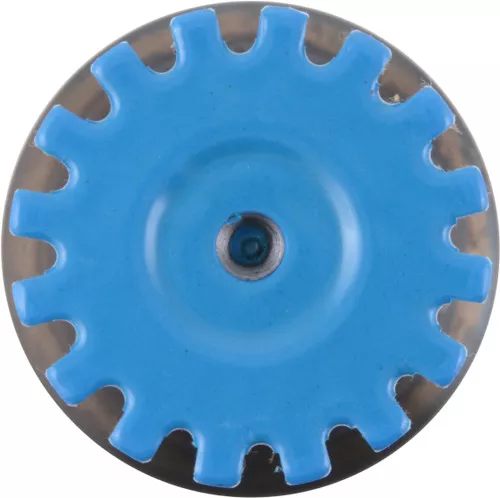

Spicer 6.5-40-191 1810 Spline Stub

Description

Spicer 6.5-40-191 1810 Spline Stub
PLEASE USE THE DANA ONILNE SLIP YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Daimler: SP 6.5 40 191, Daimler: SP 6.5 40 191HP, Dana Commercial Vehicle Service Parts: 2104-6540191, Dana Commercial Vehicle Service Parts: 6.5-40-161, Dana Commercial Vehicle Service Parts: 61MU39, Dana Commercial Vehicle Service Parts: 61MU39P1, Dresser: 57127813, Freightliner Trucks: SP 6.5 40 191, Freightliner Trucks: SP 6.5 40 191HP, Ingersoll/Rand: 946030, International Harvester (IHC): 436310C1, International Harvester (IHC): 6540191, International Harvester (IHC): D6.5-40-191B, International Harvester (IHC): D6540191, International Harvester (IHC): E6540191, International Harvester (IHC): SD6540191, Mack: 2104-6540191, Mack: 25177781, Mack: 61MU39, Mack: 61MU39P1, McNeilus: 1507124, Meritor: 18N40191, Midwest: 6.5-40-191R, Navistar: 436310C1, Navistar: 6540191, Navistar: D6.5-40-191B, Navistar: D6540191, Navistar: D6540191B, Navistar: DS6540191, Navistar: E6540191, Navistar: SD6540191, Neapco: N6.5-40-191, Paccar Parts: 6.5-40-191, Peterbilt: 181DS9, Rockwell International: 18N-40-191, UAP: 6.5-40-191, Volvo Cars: 02-7010261, Volvo Cars: 2104-6540191, Volvo Cars: 61MU39, Volvo Cars: 61MU39P1, Volvo Cars: SHP6540191, Volvo Cars: SP 6540191, 65-40-191, 6.540191, P6.5-40-191, N6.540191

UPC:

00023913211912

Series:

1810

Material:

Steel

Prop 65:

No

Spline Count:

16

Involute Spline:

N

Major Diameter:

3.000

Fits Tube Diameter:

4.500

Butt Diameter:

4.243

End Of Spline To Radius (R):

10.031

End Of Spline To Weld (K):

11.250

Fit Tube Wall Thickness:

.134

Length Of Spline (L):

4.500

Glidecote Spline:

Y
