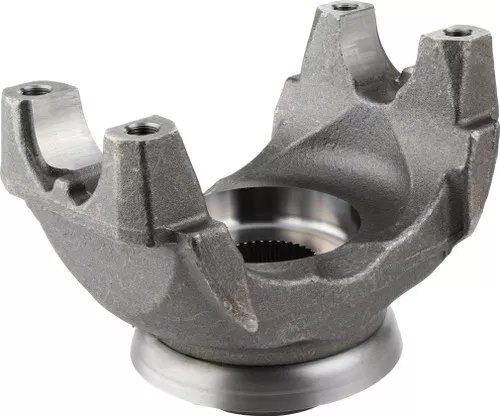

Spicer 6.5-4-3881-1X End Yoke

Description

Spicer 6.5-4-3881-1X End Yoke
6.5438811X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6.5-4-3881-1X
JOINT SERIES:1810
D DIMENSION:1.94
E DIMENSION:7.55
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.312
R HUB DIAMETER:3
S CENTERLINE TO END:5.75
SPLINE COUNT:39
SPLINE OD:2.024
NOTES:

Cross References:
Daimler: SP 6.5 4 3881 1X, Daimler: SP 6.5 4 3881 1XH, Dana Commercial Vehicle Service Parts: 2104-65438811X, Freightliner Trucks: SP 6.5 4 3881 1X, Freightliner Trucks: SP 6.5 4 3881 1XH, International Harvester (IHC): 1666083C91, International Harvester (IHC): 65438811X, International Harvester (IHC): D65438811X, International Harvester (IHC): E65438811X, Mack: 2104-65438811X, Navistar: 1666083C91, Navistar: 65438811X, Navistar: D65438811X, Navistar: DS65438811X, Navistar: E65438811X, Paccar Parts: 6.5-4-3881-1X, UAP: 6.5-4-3881-1X, Volvo Cars: 2104-65438811X, Volvo Cars: 6.5-4-3881-1X, Volvo Cars: SP 65438811X, P6.5-4-3881-1X, 65-4-3881-1X, 6.5438811X

UPC:

00023913221164

Series:

1810

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

39

Involute Spline:

N

Hub Diameter R:

3.000

Length Thru Hole Q:

2.312

Yoke Style:

HR

C/L To End Hub S:

5.750

C-Bore Depth:

0.120

Assembly:

Y

Includes Slinger/Plug:

Y

Major Diameter:

2.024
