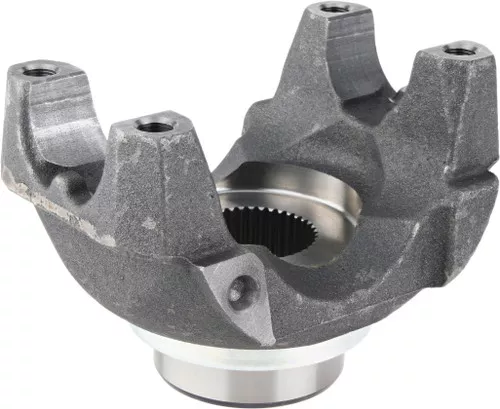

Spicer 6-4-9431-1X Half Round End Yoke S400

Description

Spicer 6-4-9431-1X Half Round End Yoke S400
6494311X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Daimler: SP 6 4 9431 1X, Daimler: SP 6 4 9431 1XHP, Freightliner Trucks: SP 6 4 9431 1X, Freightliner Trucks: SP 6 4 9431 1XHP, International Harvester (IHC): 3506071C1, International Harvester (IHC): 3506071C91, International Harvester (IHC): 6494311X, International Harvester (IHC): D6494311X, International Harvester (IHC): E6494311X, McNeilus: 1330082, Navistar: 3506071C1, Navistar: 3506071C91, Navistar: 6494311X, Navistar: D6494311X, Navistar: DS6494311X, Navistar: E6494311X, Paccar Parts: 6-4-9431-1X, Peterbilt: 1330082, UAP: 6-4-9431-1X, Volvo Cars: SP 6494311X, P6-4-9431-1X

UPC:

00023913219901

Series:

1710

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

39

Involute Spline:

Y

Hub Diameter R:

3.000

Length Thru Hole Q:

2.250

Yoke Style:

HR

C/L To End Hub S:

4.656

C-Bore Depth:

0.280

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.938

Major Diameter:

2.024

Outside Yoke Dimension (In) E:

6.190
