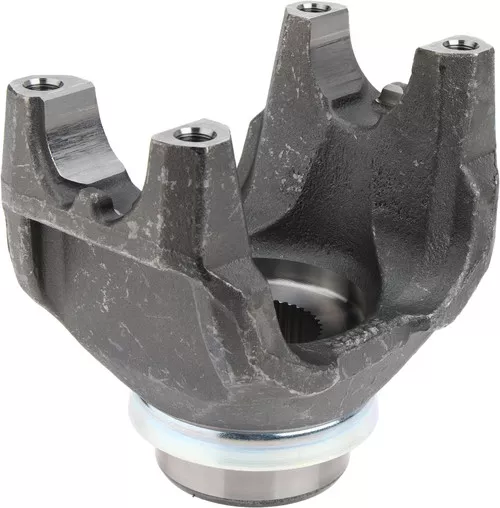

Spicer 6-4-9301-1X PINION SHAFT END YOKE

Description

Differential End Yoke

Demand Genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Applications: SPICER/EATON – S175, S190, S210, S220, S400

Cross References:
Daimler: SP 6 4 9301 1X, Daimler: SP 6 4 9301 1XHP, Dana Commercial Vehicle Service Parts: 171MU41P6, Dana Commercial Vehicle Service Parts: 2104-6493011X, Freightliner Trucks: SP 6 4 9301 1X, Freightliner Trucks: SP 6 4 9301 1XHP, International Harvester (IHC): 6493011X, International Harvester (IHC): D6493011X, International Harvester (IHC): E6493011X, Mack: 171MU41P6, Mack: 2104-6493011X, Mack: 25015938, Navistar: 6493011X, Navistar: D6493011X, Navistar: DS6493011X, Navistar: E6493011X, Paccar Parts: 6-4-9301-1X, UAP: 6-4-9301-1X, Volvo Cars: 171MU41P6, Volvo Cars: 2104-6493011X, Volvo Cars: SP 6493011X

UPC:

00023913222000

Series:

1710

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

39

Involute Spline:

Y

Hub Diameter R:

3.000

Length Thru Hole Q:

2.250

Yoke Style:

HR

C/L To End Hub S:

6.000

C-Bore Depth:

0.280

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.938

Major Diameter:

2.024

Outside Yoke Dimension (In) E:

6.190
