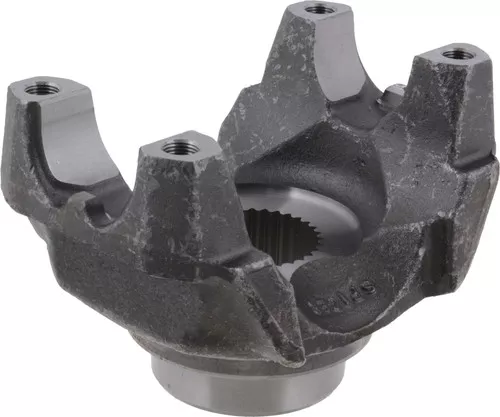

Spicer 6-4-8681-1X End Yoke 2.109″ X 32S

Description

Spicer 6-4-8681-1X End Yoke 2.109″X32S
6486811X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Blue Bird: 0007261, Blue Bird: 6 4 8681 1X, Blue Bird: 9022037, Daimler: SP 6 4 8681 1X, Daimler: SP 6 4 8681 1XHP, Dana Commercial Vehicle Service Parts: 2104-6486811X, Dana Commercial Vehicle Service Parts: 6-4-7221-1X, Dana Commercial Vehicle Service Parts: 6-4-8671-1, Freightliner Trucks: SP 6 4 8681 1X, Freightliner Trucks: SP 6 4 8681 1XHP, International Harvester (IHC): 1689522C91, International Harvester (IHC): 6486811X, International Harvester (IHC): D6486811X, International Harvester (IHC): E6486811X, Mack: 2104-6486811X, Mack: 2719-6-4-8681-1X, Meritor: 17N486811X, Navistar: 1689522C91, Navistar: 6486811X, Navistar: D6486711, Navistar: D6486811X, Navistar: DS6486811X, Navistar: E6486711, Navistar: E6486811X, Neapco: N6-4-8681-1X, Paccar Parts: 6-4-8681-1X, Peterbilt: 2HB981, UAP: 6-4-8681-1X, Volvo Cars: 2104-6486811X, Volvo Cars: SHP6486811X, Volvo Cars: SP 6486811X, Volvo Cars: SP 6-4-8681-1X, P6-4-8681-1X

UPC:

00023913213077

Series:

1710

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

32

Involute Spline:

Y

Hub Diameter R:

3.000

Length Thru Hole Q:

2.250

Yoke Style:

HR

C/L To End Hub S:

4.562

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.938

Major Diameter:

2.114

Outside Yoke Dimension (In) E:

6.190
