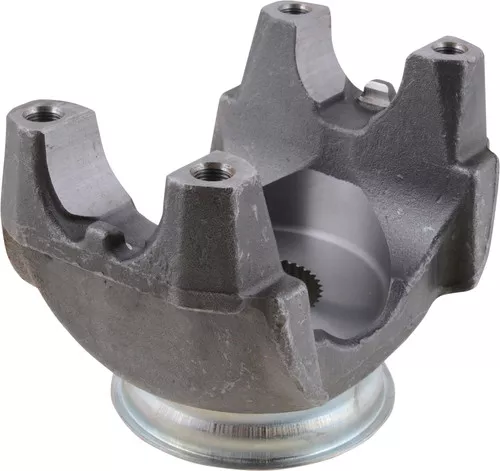

Spicer 6-4-8531-1X End Yoke

Description

Spicer 6-4-8531-1X End Yoke
6485311X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Allison Transmission: 15708541, Daimler: SP 6 4 8531 1X, Daimler: SP 6 4 8531 1XHP, Freightliner Trucks: SP 6 4 8531 1X, Freightliner Trucks: SP 6 4 8531 1XHP, General Motors: 15708541, International Harvester (IHC): 1699201C91, International Harvester (IHC): 6485311X, International Harvester (IHC): D6485311X, International Harvester (IHC): E6485311X, Mack: 2104-648531-1X, McNeilus: 8HA65, Navistar: 1699201C91, Navistar: 6485311X, Navistar: D6485311X, Navistar: DS6485311X, Navistar: E6485311X, Paccar Parts: 6-4-8531-1X, Peterbilt: 6-4-8531-1X, Peterbilt: 8HA65, UAP: 6-4-8531-1X, Volvo Cars: 6-4-8531-1X, Volvo Cars: SP 6485311X, 6-4-7991-1, P6-4-8531-1X

UPC:

00023913217754

Series:

1710

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

39

Involute Spline:

Y

Hub Diameter R:

2.625

Length Thru Hole Q:

2.250

Yoke Style:

HR

C/L To End Hub S:

5.250

C-Bore Depth:

0.250

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.938

Major Diameter:

2.024

Outside Yoke Dimension (In) E:

6.190
