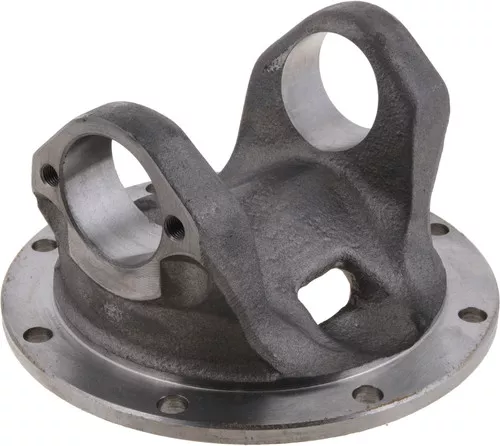

Spicer 6-2-739 Flange Yoke 1710 Series

Description

Spicer 6-2-739 Flange Yoke 1710 Series
62739

PLEASE USE THE DANA ONILNE FLANGE YOKE CATALOG TO SELECT YOUR PART NUMBERS

6-2-739
JOINT SERIES:1710
BOLT CIRCLE:7.250
BOLT DIAMETER:.438-D
BOLT HOLE QUANTITY:8
FLANGE FACE TO JOINT CENTERLINE:3.000
FIGURE:2
FLANGE PILOT:7.750M
NOTES:

Cross References:
Allison Transmission: 2366105, Daimler: SP 6 2 739, Daimler: SP 6 2 739HP, Dana Commercial Vehicle Service Parts: 2104-62739, Dana Commercial Vehicle Service Parts: 38MU3155, Dresser: 58170572, Emergency One: 360145, Flexible Truck: 13-0165-00171, Freightliner Trucks: SP 6 2 739, Freightliner Trucks: SP 6 2 739HP, General Motors: 2366105, Ingersoll/Rand: 58170572, International Harvester (IHC): 547120C1, International Harvester (IHC): 62739, International Harvester (IHC): D62739, International Harvester (IHC): E62739, Mack: 2104-62739, Mack: 25191507, Mack: 38MU3155, Meritor: 17N2739, Meritor: 17NF2, Meritor: 17NF27, Meritor: 3280S1761, Motor Coach Industries: 2366105, Navistar: 547120C1, Navistar: 62739, Navistar: DS62739, Navistar: E62739, Neapco: N6-2-739, NEOPLAN: AC0601001-003, New Flyer: 6311978, North American Bus: 6 2 739, Paccar Parts: 6-2-739, Peterbilt: 6 2 739, Prevost: 2366105, Rockwell International: 17N-2-739, Rockwell International: 17NF2, Rockwell International: 17NF-2, Rockwell International: 3280S1761, Rockwell International: 3280-S-1761, UAP: 6-2-739, Volvo Cars: 2104-62739, Volvo Cars: 38MU3155, Volvo Cars: SP 62739, P6-2-739

UPC:

00023913214432

Series:

1710

Material:

Steel

Prop 65:

No

Number Of Bolt Holes:

8

Bolt Circle Dia. In. (B):

7.250

Bolt Hole Dia. In (B):

.438 – DRILLED

Flange Face To C/L In. (G):

3.000

Flange Or Swing Dia. In. (A):

8.000

Pilot Dia. M: Male F: Female (C):

7.750 – MALE

Joint Angle 1:

22

Design:

Circular

Outside Yoke Dimension In.(E):

6.094

Yoke Bearing Dimension In. (D):

2.938

Joint Angle 2:

29
