Spicer 6-1-1731 Companion Flange

Description

Spicer 6-1-1731 Companion Flange

Cross References:
Cusco Fab: DR017360, Daimler: SP 6 1 1731, Daimler: SP 6 1 1731HP, Dana Commercial Vehicle Service Parts: 2104-611731, Eagle: 01-0606-020, Freightliner Trucks: SP 6 1 1731, Freightliner Trucks: SP 6 1 1731HP, International Harvester (IHC): 611731, International Harvester (IHC): 686255R1, International Harvester (IHC): D611731, International Harvester (IHC): E611731, Mack: 2104-611731, Navistar: 611731, Navistar: 686255R1, Navistar: D611731, Navistar: DS611731, Navistar: E611731, Paccar Parts: 6-1-1731, Peterbilt: 17-DS-158, Sandvik: 002773-002, UAP: 6-1-1731, Volvo Cars: 2104-611731, Volvo Cars: 827563, Volvo Cars: SP 611731, P6-1-1731

UPC:

00023913213534

Series:

1710

Material:

Steel

Prop 65:

No

Spline Count:

6

Involute Spline:

N

Companion Flange Assembly:

N

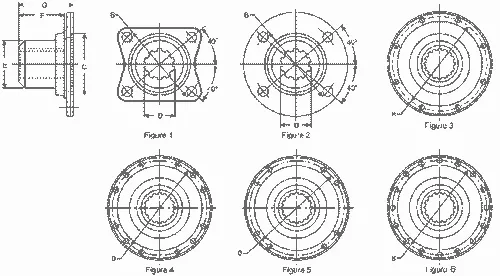

Flange Face To End Of Hub (G):

3.750

Ground Hub Diameter In.:

3.000

Length Thru Hole (F) In.:

3.250

Major Diameter (D) In.:

2.225

Pilot Diameter (C) In.:

7.750 – FEMALE

Bolt Circle Dia.(B) In.(FL YK):

7.25

Bolt Hole Diameter In (FL YK):

0.375 – DRILLED

Number Of Holes (FL YK):

8

Slinger Diameter:

3.070
