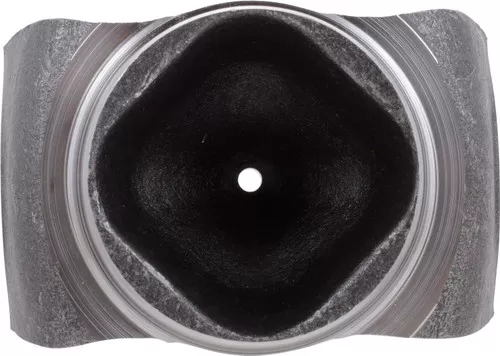

Spicer 5-28-627 1610 Weld Yoke 3.5 X 134

Description

Spicer 5-28-627 1610 Weld Yoke 3.5 X 134
528627
PLEASE USE THE DANA ONILNE WELD YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Allison Transmission: 02035521, Blue Bird: 1062934, Daimler: 572266, Daimler: SP 5 28 627, Daimler: SP 5 28 627HP, Dana Commercial Vehicle Service Parts: 38MU3203, Freightliner Trucks: 572266, Freightliner Trucks: SP 5 28 627, Freightliner Trucks: SP 5 28 627HP, General Motors: 02035521, International Harvester (IHC): 3556623C1, International Harvester (IHC): 356623C1, International Harvester (IHC): 528627, International Harvester (IHC): 5-28-627, International Harvester (IHC): D528627, International Harvester (IHC): D528627B, International Harvester (IHC): E528627, Mack: 2104-528627, Mack: 38MU3203, Meritor: 16N28627, Midwest: 5-28-627R, Navistar: 3556623C1, Navistar: 356623C1, Navistar: 528627, Navistar: D528627, Navistar: D528627B, Navistar: DS528627, Navistar: E528627, Neapco: N5-28-627, Paccar Parts: 5-28-627, Rockwell International: 16N-28-627, UAP: 5-28-627, Volvo Cars: 38MU3203, Volvo Cars: 572266, Volvo Cars: SHP5-28-627, Volvo Cars: SP 528627, N528627, P5-28-627, 16NY52

UPC:

00023913213107

Series:

1610

Material:

Steel

Prop 65:

No

Joint Angle 1:

35

Design:

BP

Joint Angle 2:

27

Fits Tube Wall (S: Seam W: Weld):

.134-WELDED

Butt Diameter (F) In.:

3.243

C/L To Weld (H) In.:

3.000

Bearing Cap Diameter (D) In.:

1.875

Outside Yoke Dimension (E) In.:

5.312

Fits Tube Diameter (In):

3.500
