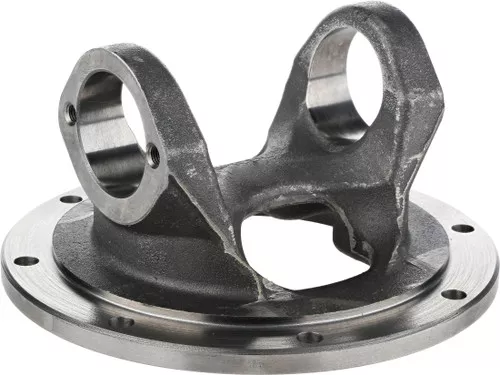

Spicer 5-2-709 Driveshaft Flange

Description

Spicer 5-2-709 Flange
52709

PLEASE USE THE DANA ONILNE FLANGE YOKE CATALOG TO SELECT YOUR PART NUMBERS

5-2-709
JOINT SERIES:1610
BOLT CIRCLE:7.250
BOLT DIAMETER:.375-D
BOLT HOLE QUANTITY:8
FLANGE FACE TO JOINT CENTERLINE:2.750
FIGURE:2
FLANGE PILOT:6.435M
NOTES:Flange has pilot for brake

Cross References:
Allison Transmission: 02341627, Allison Transmission: 29503973, Blue Bird: 1926633, Daimler: SP 5 2 709, Daimler: SP 5 2 709HP, Dana Commercial Vehicle Service Parts: 2104-52709, Freightliner Trucks: SP 5 2 709, Freightliner Trucks: SP 5 2 709HP, General Motors: 02341627, General Motors: 29503973, International Harvester (IHC): 229642R1, International Harvester (IHC): 52709, International Harvester (IHC): D52709, International Harvester (IHC): E52709, Mack: 2104-52709, Meritor: 16NF5, Navistar: 229642R1, Navistar: 52709, Navistar: D52709, Navistar: DS52709, Navistar: E52709, Neapco: N5-2-709, Paccar Parts: 5-2-709, Peterbilt: 6JA522, Rockwell International: 16N-2-709, Rockwell International: 16NF5, UAP: 5-2-709, Volvo Cars: 2104-52709, Volvo Cars: SP 52709, P5-2-709

UPC:

00023913220334

Series:

1610

Material:

Steel

Prop 65:

No

Number Of Bolt Holes:

8

Bolt Circle Dia. In. (B):

7.250

Bolt Hole Dia. In (B):

.375 – DRILLED

Flange Face To C/L In. (G):

2.750

Flange Or Swing Dia. In. (A):

8.000

Pilot Dia. M: Male F: Female (C):

6.435 – MALE

Design:

Circular

Outside Yoke Dimension In.(E):

5.312

Yoke Bearing Dimension In. (D):

1.875
