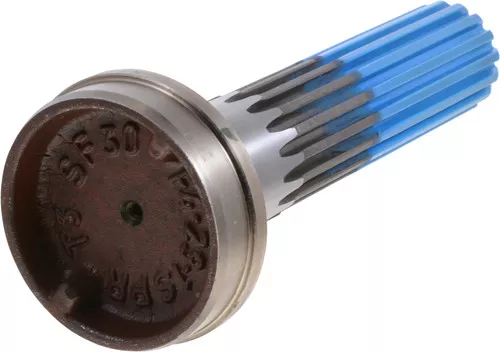

Spicer 4-53-61 Splined Stub Shaft

Description

Spicer 4-53-61 Splined Stub Shaft
45361
PLEASE USE THE DANA ONILNE SLIP YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Allison Transmission: 15535658, Blue Bird: 0096952, Daimler: SP 4 53 61, Daimler: SP 4 53 61HP, Dana Commercial Vehicle Service Parts: 2104-45361, Dana Commercial Vehicle Service Parts: 4-53-491, Dana Commercial Vehicle Service Parts: 4-53-61SB, Freightliner Trucks: SP 4 53 61, Freightliner Trucks: SP 4 53 61HP, General Motors: 15535658, International Harvester (IHC): 4 53 61, International Harvester (IHC): 45361, International Harvester (IHC): 922072R1, International Harvester (IHC): D45361, International Harvester (IHC): E45361, International Harvester (IHC): ZKC45361, Mack: 2104-45361, Meritor: 155N5361, Midwest: 4-53-61R, Navistar: 4 53 61, Navistar: 45361, Navistar: 922072R1, Navistar: D45361, Navistar: DS45361, Navistar: E45361, Navistar: ZKC45361, Neapco: N4-53-61, Paccar Parts: 4-53-61, Rockwell International: 155N-53-61, UAP: 4-53-61, Volvo Cars: 2104-45361, Volvo Cars: SP 45361, P4-53-61

UPC:

00023913213930

Series:

1550

Material:

Steel

Prop 65:

No

Style:

1

Involute:

N

Spline O.D.:

1.7500

Fits Tube Diameter:

3.5

Butt Diameter:

3.321

Fits Tube Wall:

0.095

Bearing Diameter (C) In.:

1.772

Bearing Diameter (Max):

1.7721

Spline End To Weld (K) In.:

8.562

Spline Length (L) In.:

5.938

Bearing Diameter (Min):

1.7716

For Use With:

Outboard Slip Yoke

Shoulder Diameter (B) In.:

2.188

Spline End To Brg Shoulder (Y):

7.469

Shoulder Length (G) In.:

0.812
