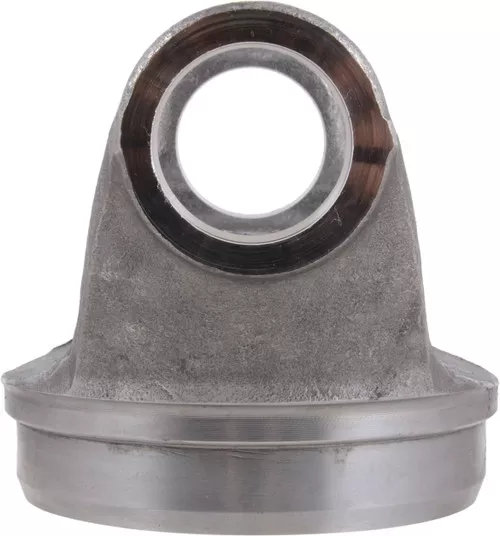

Spicer 4-28-277 Weld Yoke

Description

Spicer 4-28-277 Weld Yoke
428277
PLEASE USE THE DANA ONILNE WELD YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Blue Bird: 0517979, Blue Bird: 260-0517979, Daimler: SP 4 28 277, Daimler: SP 4 28 277HP, Freightliner Trucks: SP 4 28 277, Freightliner Trucks: SP 4 28 277HP, International Harvester (IHC): 428277, International Harvester (IHC): 878085R1, International Harvester (IHC): D428277, International Harvester (IHC): E428277, Navistar: 428277, Navistar: 878085R1, Navistar: D428277, Navistar: DS428277, Navistar: E428277, Paccar Parts: 4-28-277, Peterbilt: 428277, Rockwell International: 155N-28-277, UAP: 4-28-277, Volvo Cars: SP 428277, P4-28-277

UPC:

00023913214364

Series:

1550

Material:

Steel

Prop 65:

No

Joint Angle 1:

22.5

Design:

SR

Fits Tube Wall (S: Seam W: Weld):

.083-WELDED

Butt Diameter (F) In.:

3.845

C/L To Weld (H) In.:

2.188

Bearing Cap Diameter (D) In.:

1.375

Outside Yoke Dimension (E) In.:

5.25

Fits Tube Diameter (In):

4.000
