Spicer 4-2-1109 Flange Yoke

Sale!
Spicer 4-2-1109 Flange Yoke

Spicer 4-2-1109 Flange Yoke

Original price was: $226.75.Current price is: $114.70.

11 in stock

SKU: DDP4-2-1109 Category:

Description

Spicer 4-2-1109 Flange Yoke
421109

PLEASE USE THE DANA ONILNE FLANGE YOKE CATALOG TO SELECT YOUR PART NUMBERS

4-2-1109
JOINT SERIES:1550
BOLT CIRCLE:6.125
BOLT DIAMETER:.406-D
BOLT HOLE QUANTITY:8
FLANGE FACE TO JOINT CENTERLINE:2.000

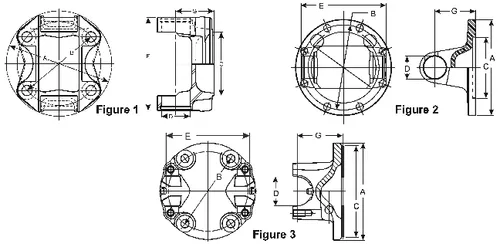

FIGURE:2
FLANGE PILOT:5.312M
NOTES:

Cross References:
Daimler: SP 4 2 1109, Freightliner Trucks: SP 4 2 1109, International Harvester (IHC): 421109, International Harvester (IHC): E421109, John Deere: N370153, Navistar: 421109, Navistar: DS421109, Navistar: E421109, Volvo Cars: SP 421109, P4-2-1109

UPC:
00023913245184
Series:
1550
Material:
Steel
Prop 65:
No
Number Of Bolt Holes:
8
Bolt Circle Dia. In. (B):
6.125
Bolt Hole Dia. In (B):
.406 – DRILLED
Flange Face To C/L In. (G):
2.000
Flange Or Swing Dia. In. (A):
6.875
Pilot Dia. M: Male F: Female (C):
5.312 – MALE
Design:
Circular
Outside Yoke Dimension In.(E):
5.25
Yoke Bearing Dimension In. (D):
1.375
