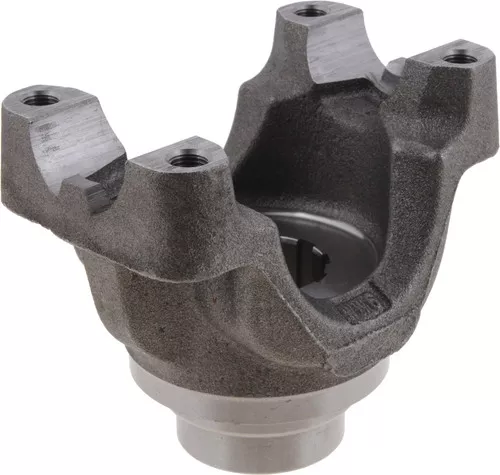

Spicer 3-4-6901-1 PINION SHAFT END YOKE

Description

Differential End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non genuine parts simply cannot deliver.

Cross References:
Allison Transmission: 15619184, Daimler: SP 3 4 6901 1, Daimler: SP 3 4 6901 1HP, Freightliner Trucks: SP 3 4 6901 1, Freightliner Trucks: SP 3 4 6901 1HP, General Motors: 15619184, International Harvester (IHC): 1681109C1, International Harvester (IHC): 1681109C91, International Harvester (IHC): 3469011, International Harvester (IHC): D3469011, International Harvester (IHC): D3-4-6901-1, International Harvester (IHC): E3469011, John Deere: T169301, Navistar: 1681109C1, Navistar: 1681109C91, Navistar: 3469011, Navistar: D3469011, Navistar: D3-4-6901-1, Navistar: DS3469011, Paccar Parts: 3-4-6901-1, UAP: 3-4-6901-1, Volvo Cars: SP 3469011

UPC:

00023913213398

Series:

1480

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

10

Involute Spline:

N

Hub Diameter R:

1.810

Length Thru Hole Q:

2.000

Yoke Style:

BS

C/L To End Hub S:

4.031

Joint Angle 1:

30

Yoke Bearing Dimension (In) D:

1.375

Major Diameter:

1.500

Outside Yoke Dimension (In) E:

4.188
