Spicer 3-2-1859 1350 Series Flange

Description

Spicer 3-2-1859 1350 Series Flange
321859, C3-2-831

PLEASE USE THE DANA ONILNE FLANGE YOKE CATALOG TO SELECT YOUR PART NUMBERS

3-2-1859
JOINT SERIES:1350
BOLT CIRCLE:4.750
BOLT DIAMETER:.500-D
BOLT HOLE QUANTITY:4
FLANGE FACE TO JOINT CENTERLINE:1.750

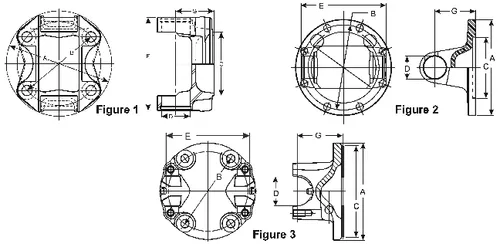

FIGURE:1
FLANGE PILOT:2.953F
NOTES:Bolt holes are equally spaced. Part has hole thru center.

Cross References:
Daimler: SP 3 2 1859, Daimler: SP 3 2 1859HP, Ford: 2C3Z-4865-AA, Freightliner Trucks: SP 3 2 1859HP, International Harvester (IHC): 321859, International Harvester (IHC): D321859, International Harvester (IHC): E321859, Navistar: 321859, Navistar: D321859, Navistar: DS321859, Navistar: E321859, Volvo Cars: SP 321859, P3-2-1859

UPC:

00023913230777

Series:

1350

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Number Of Bolt Holes:

4

Bolt Circle Dia. In. (B):

4.750

Bolt Hole Dia. In (B):

.510 – DRILLED

Flange Face To C/L In. (G):

1.750

Flange Or Swing Dia. In. (A):

5.750

Pilot Dia. M: Male F: Female (C):

2.953 – FEMALE

Design:

Square

Outside Yoke Dimension In.(E):

3.875

Yoke Bearing Dimension In. (D):

1.188
