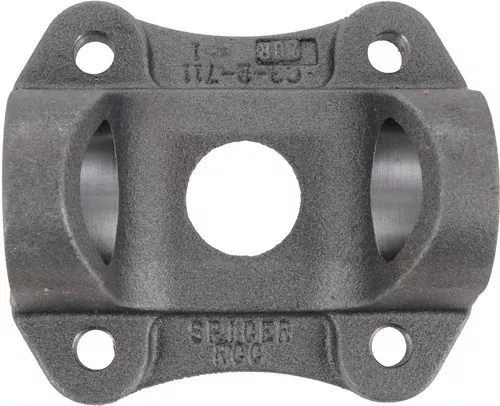

Spicer 3-2-1719 1480 Series Flange

Description

Spicer 3-2-1719 1480 Series Flange
321719

PLEASE USE THE DANA ONILNE FLANGE YOKE CATALOG TO SELECT YOUR PART NUMBERS

3-2-1719
JOINT SERIES:1480
BOLT CIRCLE:4.250
BOLT DIAMETER:.472-T
BOLT HOLE QUANTITY:4
FLANGE FACE TO JOINT CENTERLINE:1.800
FIGURE:1
FLANGE PILOT:2.680F
NOTES:12mm tapped holes in flange

Cross References:
Daimler: SP 3 2 1719, Daimler: SP 3 2 1719HP, Ford: F81Z-4865-DA, Freightliner Trucks: SP 3 2 1719, Freightliner Trucks: SP 3 2 1719HP, International Harvester (IHC): 321719, International Harvester (IHC): D321719, International Harvester (IHC): E321719, Mack: 2104-321719, Navistar: 321719, Navistar: D321719, Navistar: DS321719, Navistar: E321719, UAP: 3-2-1719, Volvo Cars: SP 321719, P3-2-1719

UPC:

00023913217778

Series:

1480

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Number Of Bolt Holes:

4

Bolt Circle Dia. In. (B):

4.250

Bolt Hole Dia. In (B):

.472 – TAPPED

Flange Face To C/L In. (G):

1.800

Flange Or Swing Dia. In. (A):

5.875

Pilot Dia. M: Male F: Female (C):

2.680 – FEMALE

Joint Angle 1:

12

Design:

Square

Outside Yoke Dimension In.(E):

4.438

Yoke Bearing Dimension In. (D):

1.375
