Spicer 3-2-1619 Ford 1350 Flange 12MM Thread

Description

Spicer 3-2-1619 Ford 1350 Flange 12MM Thread
321619

C3-2-651

PLEASE USE THE DANA ONILNE FLANGE YOKE CATALOG TO SELECT YOUR PART NUMBERS

3-2-1619
JOINT SERIES:1350
BOLT CIRCLE:4.250
BOLT DIAMETER:.472-T
BOLT HOLE QUANTITY:4
FLANGE FACE TO JOINT CENTERLINE:1.625

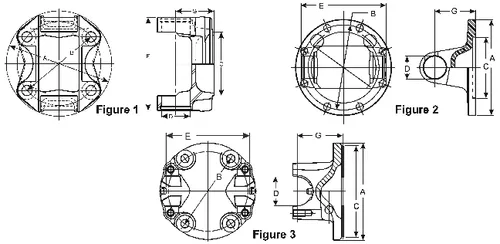

FIGURE:1
FLANGE PILOT:2.000F
NOTES:12mm threaded holes, Metric flange

Cross References:
Daimler: SP 3 2 1619HP, Freightliner Trucks: SP 3 2 1619HP, International Harvester (IHC): 321619, International Harvester (IHC): D321619, International Harvester (IHC): E321619, Mack: 2104-321619, Navistar: 321619, Navistar: D321619, Navistar: DS321619, Navistar: E321619, Neapco: N3-2-1619, UAP: 3-2-1619, Volvo Cars: SP 321619, F6TZ4782BA, P3-2-1619, 3502-1619

UPC:

00023913232351

Series:

1350

Material:

Steel

Prop 65:

No

Number Of Bolt Holes:

4

Bolt Circle Dia. In. (B):

4.250

Bolt Hole Dia. In (B):

M12 x 1.75 – TAPPED

Flange Face To C/L In. (G):

1.625

Flange Or Swing Dia. In. (A):

5.360

Pilot Dia. M: Male F: Female (C):

2.000 – FEMALE

Design:

Square

Outside Yoke Dimension In.(E):

3.875

Yoke Bearing Dimension In. (D):

1.888
