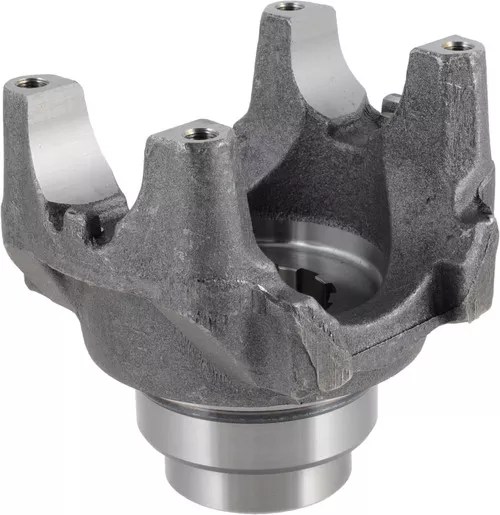

Spicer 250-4-561-1 SPL Fuller Trans

Description

Spicer 250-4-561-1 SPL Fuller Trans
25045611
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

250-4-561-1
JOINT SERIES:SPL250
D DIMENSION:2.362
E DIMENSION:6.412
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:3
R HUB DIAMETER:3.75
S CENTERLINE TO END:6.25
SPLINE COUNT:10
SPLINE OD:2.5
NOTES:Hub machined for speedometer gear

Cross References:
Daimler: 07-16854-008, Daimler: SP 250 4 561 1HP, Dana Commercial Vehicle Service Parts: 2104-25045611, Eaton: 25045611, Freightliner Trucks: 07-16854-008, Freightliner Trucks: SP 250 4 561 1HP, International Harvester (IHC): 3519832C1, International Harvester (IHC): D25045611, International Harvester (IHC): E25045611, International Harvester (IHC): T25045611, Mack: 2104-25045611, Navistar: 3519832C1, Navistar: D25045611, Navistar: DS25045611, Navistar: E25045611, Navistar: T25045611, Paccar Parts: 250-4-561-1, UAP: 250-4-561-1, Volvo Cars: 2104-25045611, Volvo Cars: 3099412, Volvo Cars: SP 25045611, P250-4-561-1

UPC:

023913247591
