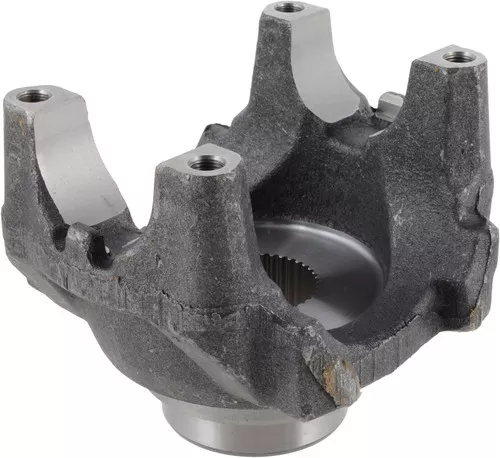

Spicer 250-4-391-1X SPL250 End Yoke

Description

Spicer 250-4-391-1X SPL250 End Yoke
25043911X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

250-4-391-1X
JOINT SERIES:SPL250
D DIMENSION:2.362
E DIMENSION:6.417
YOKE STYLE:HR
Q LENGTH THRU HOLE:2.245
R HUB DIAMETER:3.00
S CENTERLINE TO END:5.240
SPLINE COUNT:39
SPLINE OD:
NOTES:

Cross References:
Daimler: SP 250 4 391 1X, Daimler: SP 250 4 391 1XHP, Dana Commercial Vehicle Service Parts: 125MU53P23, Dana Commercial Vehicle Service Parts: 181MU41P11, Freightliner Trucks: SP 250 4 391 1X, Freightliner Trucks: SP 250 4 391 1XHP, International Harvester (IHC): 25043911X, International Harvester (IHC): 3515485C91, International Harvester (IHC): D25043911X, International Harvester (IHC): E25043911X, International Harvester (IHC): H250 4 391 1X, Mack: 125MU53P23, Mack: 181MU41P11, Mack: 2104-25043911X, Mack: 25172943, Navistar: 25043911X, Navistar: 3515485C91, Navistar: D25043911X, Navistar: DS25043911X, Navistar: E25043911X, Navistar: H250 4 391 1X, Paccar Parts: 250-4-391-1X, Peterbilt: 1402055, Volvo Cars: 125MU53P23, Volvo Cars: 181MU41P11, Volvo Cars: 2104-25043911X, Volvo Cars: SHP25043911X, Volvo Cars: SP 25043911X, P250-4-391-1X, 250-4-381-1

UPC:

00023913248215

Series:

SPL250

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

39

Involute Spline:

Y

Hub Diameter R:

3.000

Length Thru Hole Q:

2.245

Yoke Style:

HR

C/L To End Hub S:

5.240

C-Bore Depth:

0.280

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.362

Major Diameter:

2.024

Outside Yoke Dimension (In) E:

6.417
