Spicer 2-4-533 1310 1.25 Round Bore 5/16 Key

Description

Spicer 2-4-533 1310 1.25 Round Bore 5/16 Key

Cross References:
Baer Brake Systems: 2520-00492-4304, Daimler: 2 4 533, Daimler: SP 2 4 533, Daimler: SP 2 4 533HP, Dana Commercial Vehicle Service Parts: 2104-24533, Freightliner Trucks: 2 4 533, Freightliner Trucks: SP 2 4 533, Freightliner Trucks: SP 2 4 533HP, Hyster: 278083, International Harvester (IHC): 100599, International Harvester (IHC): 1662827C1, International Harvester (IHC): 24533, International Harvester (IHC): D24533, International Harvester (IHC): E24533, International Harvester (IHC): ZJU24533, Komatsu: VJ9660, Mack: 2104-24533, McNeilus: 12DS1, Meritor: 131N4533, NACCO: 278083, Navistar: 100599, Navistar: 1662827C1, Navistar: 24533, Navistar: D24533, Navistar: DS24533, Navistar: E24533, Navistar: ZJU24533, Neapco: N2-4-533, Paccar Parts: 2-4-533, Peabody Myers: 10-61145, Peterbilt: 12DS1, Peterbilt: 12-DS-1, Pierce: 12DS1, Rockwell International: 131N-4-533, Terex: 12404-22, UAP: 2-4-533, Volvo Cars: 2104-24533, Volvo Cars: 30006-5034, Volvo Cars: SHP24533, Volvo Cars: SP 24533, N24533, P2-4-533, 2-4-533X, 24533X

UPC:

00023913228804

Series:

1310

Material:

Steel

Prop 65:

No

Type:

Straight Round Hole

Involute Spline:

N

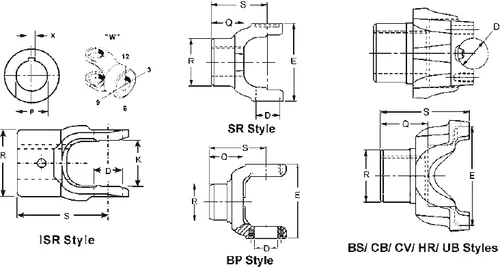

Hub Diameter R:

2.125

Yoke Style:

SR

C/L To End Hub S:

2.562

Joint Angle 1:

17

Yoke Bearing Dimension (In) D:

1.062

Keyway Location W:

12

Set Screw Location W:

6

Set Screw Hole Diameter (In):

0.375

Outside Yoke Dimension (In) E:

3.469

Hole Diameter (In) P:

1.250

Sae Keyway Width (In) X:

0.312

Hole Diameter – Max:

1.251

Hole Diameter – Min:

1.250

Keyway Width – Max:

0.3155

Keyway Width – Min:

0.3135
