Spicer 2-4-453 1310 Round Bore .875

Description

Spicer 2-4-453 1310 Round Bore .875

Cross References:
Cameco: 0270005349, Cameco: 02705349, Daimler: SP 2 4 453, Daimler: SP 2 4 453HP, Dana Commercial Vehicle Service Parts: 2104-24453, Freightliner Trucks: SP 2 4 453, Freightliner Trucks: SP 2 4 453HP, International Harvester (IHC): 24453, International Harvester (IHC): D24453, International Harvester (IHC): E24453, Mack: 2104-24453, Navistar: 24453, Navistar: D24453, Navistar: DS24453, Navistar: E24453, Paccar Parts: 24453, Paccar Parts: 2-4-453, UAP: 2-4-453, Volvo Cars: 2104-24453, Volvo Cars: 30006-5038, Volvo Cars: SP 24453, P2-4-453

UPC:

00023913230784

Series:

1310

Material:

Steel

Prop 65:

No

Type:

Straight Round Hole

Involute Spline:

N

Hub Diameter R:

2.125

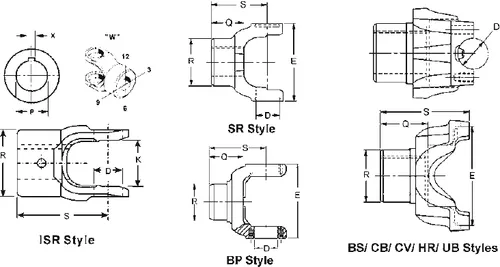

Yoke Style:

SR

C/L To End Hub S:

2.562

Joint Angle 1:

17

Yoke Bearing Dimension (In) D:

1.062

Keyway Location W:

12

Set Screw Location W:

6

Set Screw Hole Diameter (In):

0.375

Outside Yoke Dimension (In) E:

3.469

Hole Diameter (In) P:

0.875

Sae Keyway Width (In) X:

0.188
