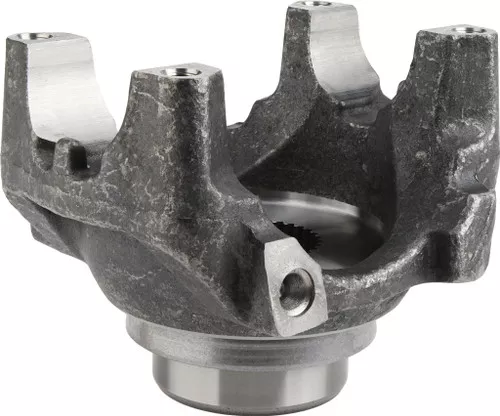

Spicer 170-4-901-1X Single Axle

Description

Spicer 170-4-901-1X Single Axle
17049011X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

170-4-901-1X
JOINT SERIES:SPL170
D DIMENSION:1.938
E DIMENSION:5.457
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.25
R HUB DIAMETER:3
S CENTERLINE TO END:5
SPLINE COUNT:32 I
SPLINE OD:2.114
NOTES:

Cross References:
Daimler: SP 170 4 901 1X, Daimler: SP 170 4 901 1XHP, Freightliner Trucks: SP 170 4 901 1XHP, International Harvester (IHC): 17049011X, International Harvester (IHC): 3517065C91, International Harvester (IHC): D17049011X, International Harvester (IHC): E17049011X, Navistar: 17049011X, Navistar: 3517065C91, Navistar: D17049011X, Navistar: DS17049011X, Navistar: E17049011X, Paccar Parts: 170-4-901-1X, UAP: 170-4-901-1X, Volvo Cars: SP 17049011X, P170-4-901-1X

UPC:

00023913247423

Series:

SPL170

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

32

Involute Spline:

Y

Hub Diameter R:

3.000

Length Thru Hole Q:

2.250

Yoke Style:

HR

C/L To End Hub S:

5.000

C-Bore Depth:

0.424

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.114

Outside Yoke Dimension (In) E:

6.456
