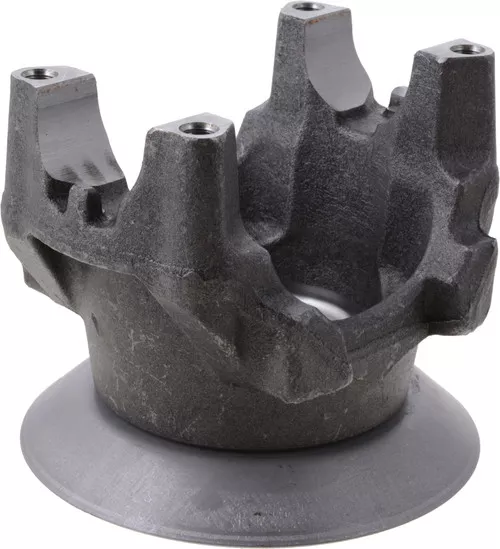

Spicer 170-4-741-1X SPL170 End Yoke

Description

Spicer 170-4-741-1X SPL170 End Yoke
17047411X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
NOTES:High angle yoke

Cross References:
Daimler: 30071-3417, Daimler: SP 170 4 741 1X, Daimler: SP 170 4 741 1XHP, Dana Commercial Vehicle Service Parts: 170MU51P33, Freightliner Trucks: 30071-3417, Freightliner Trucks: SP 170 4 741 1X, Freightliner Trucks: SP 170 4 741 1XHP, International Harvester (IHC): 17047411X, International Harvester (IHC): 3544415C91, International Harvester (IHC): D17047411X, International Harvester (IHC): E17047411X, Mack: 170MU51P33, Mack: 2104-17047411X, Mack: 25160776, McNeilus: 3315539, Meritor: 170TYS382A, Meritor: 170TYS38-2A, Meritor: A 3260J1856, Navistar: 17047411X, Navistar: 3544415C91, Navistar: D17047411X, Navistar: DS17047411X, Navistar: E17047411X, Paccar Parts: 170-4-741-1X, Peterbilt: 3315539, Rockwell International: 170TYS38-2A, Volvo Cars: 170MU51P33, Volvo Cars: 25160776, Volvo Cars: 8081938, Volvo Cars: SP 17047411X, 170-4-731-1, P170-4-741-1X

UPC:

00023913249014

Series:

SPL170

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

46

Involute Spline:

Y

Hub Diameter R:

3.250

Length Thru Hole Q:

2.328

Yoke Style:

HR

C/L To End Hub S:

6.438

C-Bore Depth:

0.140

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.390

Outside Yoke Dimension (In) E:

6.456
