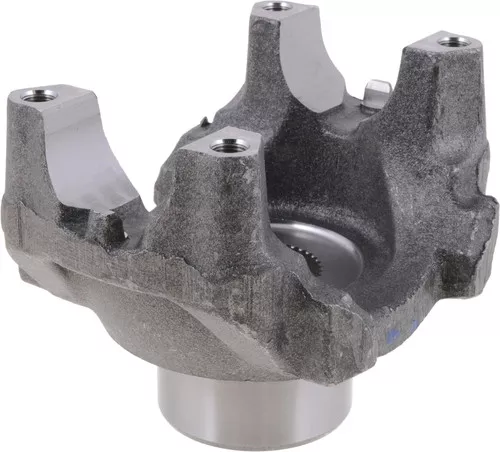

Spicer 170-4-641-1 SPL170 End Yoke

Description

Spicer 170-4-641-1 SPL170 End Yoke
17046411
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Daimler: SP 170 4 641 1, Daimler: SP 170 4 641 1HP, Freightliner Trucks: 30071-3409, Freightliner Trucks: SP 170 4 641 1, Freightliner Trucks: SP 170 4 641 1HP, International Harvester (IHC): 17046411, International Harvester (IHC): 2603017C1, International Harvester (IHC): 3513841C1, International Harvester (IHC): D17046411, International Harvester (IHC): E17046411, Mack: 2104-17046411, McNeilus: 1454416, Meritor: 170TYS322, Meritor: 170TYS32-2, Meritor: 3260G1827, Navistar: 17046411, Navistar: 2603017C1, Navistar: 3513841C1, Navistar: D17046411, Navistar: DS17046411, Navistar: E17046411, Paccar Parts: 170-4-641-1, Paccar Parts: 170TYS32-2, Peterbilt: 1454416, Rockwell International: 170TYS32-2, UAP: 170-4-641-1, Volvo Cars: 20865255, Volvo Cars: SP 17046411, 17046511X, P170-4-641-1, 170-4-651-1X

UPC:

00023913248758

Series:

SPL170

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

39

Involute Spline:

N

Hub Diameter R:

3.000

Length Thru Hole Q:

2.312

Yoke Style:

HR

C/L To End Hub S:

5.090

C-Bore Depth:

0.105

C-Bore Diameter:

2.072

Joint Angle 1:

25

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.024

Outside Yoke Dimension (In) E:

6.456
