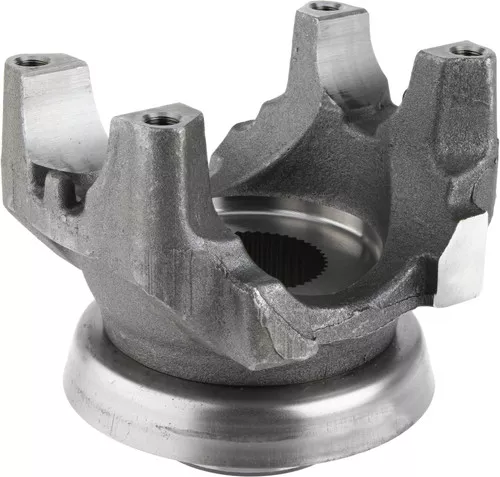

Spicer 170-4-581-1X Spl170 Half Round End Yoke

Description

Spicer 170-4-581-1X Spl170 Half Round End Yoke
17045811X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Daimler: SP 170 4 581 1X, Dana Commercial Vehicle Service Parts: 170MU51P23, International Harvester (IHC): 17045811X, International Harvester (IHC): 3553825C91, Mack: 170MU51P23, Meritor: 170TYS38-3A, Meritor: A 3260B1848, Navistar: 17045811X, Navistar: 3553825C91, Navistar: DS17045811X, Paccar Parts: 170-4-581-1X, Rockwell International: 170TYS38-3A, Volvo Cars: 170MU51P23, Volvo Cars: 20436182, Volvo Cars: SP 17045811X, P170-4-581-1X

UPC:

00023913261085

Series:

SPL170

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

46

Involute Spline:

N

Hub Diameter R:

3.250

Length Thru Hole Q:

2.875

Yoke Style:

HR

C/L To End Hub S:

5.760

C-Bore Depth:

0.140

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.374

Outside Yoke Dimension (In) E:

6.456
