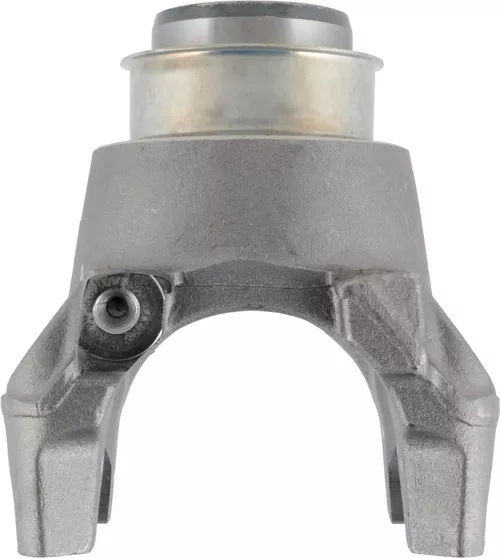

Spicer 170-4-321-1X SPL170 End Yoke 41 Spline

Description

Spicer 170-4-321-1X SPL170 End Yoke 41 Spline
17043211X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
NOTES:High angle yoke

Cross References:
Daimler: 30071-3418, Daimler: SP 170 4 321 1X, Daimler: SP 170 4 321 1XHP, Dana Commercial Vehicle Service Parts: 170MU51P34, Dana Commercial Vehicle Service Parts: 2104-1704321-1X, Dana Commercial Vehicle Service Parts: 210851, Eaton: 210851, Freightliner Trucks: 30071-3418, Freightliner Trucks: SP 170 4 321 1X, Freightliner Trucks: SP 170 4 321 1XHP, International Harvester (IHC): 17043211X, International Harvester (IHC): 3515907C91, International Harvester (IHC): D17043211X, International Harvester (IHC): E17043211X, Mack: 170-4-321-1X, Mack: 170MU51P34, Mack: 2104-17043211X, Mack: 2104-1704321-1X, Mack: 25163069, Navistar: 17043211X, Navistar: 3515907C91, Navistar: D17043211X, Navistar: DS17043211X, Navistar: E17043211X, Navistar: ETN0210851, Paccar Parts: 170-4-321-1X, Paccar Parts: 210851, UAP: 170-4-321-1X, Volvo Cars: 170-4-321-1X, Volvo Cars: 170MU51P34, Volvo Cars: 2104-1704321-1X, Volvo Cars: 8081935, Volvo Cars: SP 17043211X, P170-4-321-1X, 170-4-311-1

UPC:

00023913248482

Series:

SPL170

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

41

Involute Spline:

Y

Hub Diameter R:

2.938

Length Thru Hole Q:

3.000

Yoke Style:

HR

C/L To End Hub S:

7.190

C-Bore Depth:

0.380

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.143

Outside Yoke Dimension (In) E:

6.456
