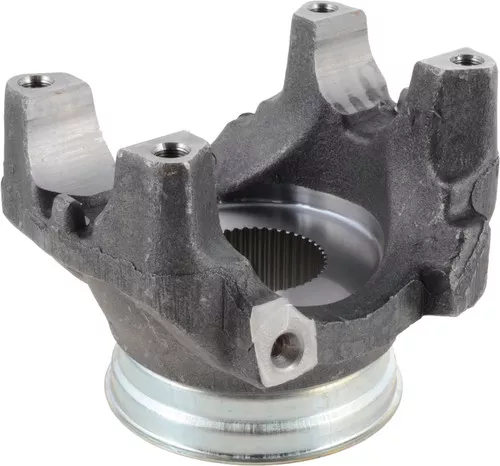

Spicer 170-4-31-1X Spl End Yoke

Description

Spicer 170-4-31-1X Spl End Yoke
1704311X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Daimler: SP 170 4 31 1X, Daimler: SP 170 4 31 1XHP, Dana Commercial Vehicle Service Parts: 170MU51P16, Dana Commercial Vehicle Service Parts: 210859, Freightliner Trucks: SP 170 4 31 1X, Freightliner Trucks: SP 170 4 31 1XHP, General Motors: 15184057, International Harvester (IHC): 1704311X, International Harvester (IHC): 3513794C91, International Harvester (IHC): D1704311X, International Harvester (IHC): E1704311X, Mack: 170MU51P16, Mack: 2104-1704311X, Mack: 25157456, Navistar: 1704311X, Navistar: 3513794C91, Navistar: D1704311X, Navistar: DS1704311X, Navistar: E1704311X, Paccar Parts: 170-4-31-1X, UAP: 170-4-31-1X, Volvo Cars: 170MU51P16, Volvo Cars: 8081929, Volvo Cars: SP 1704311X, P170-4-31-1X

UPC:

00023913248512

Series:

SPL170

Material:

Steel

Prop 65:

Yes

California Proposition 65:

WARNING: Cancer – www.p65warnings.ca.gov

Type:

Splined Hole

Spline Count:

44

Involute Spline:

Y

Hub Diameter R:

2.938

Length Thru Hole Q:

2.350

Yoke Style:

HR

C/L To End Hub S:

5.094

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.274

Outside Yoke Dimension (In) E:

6.456
