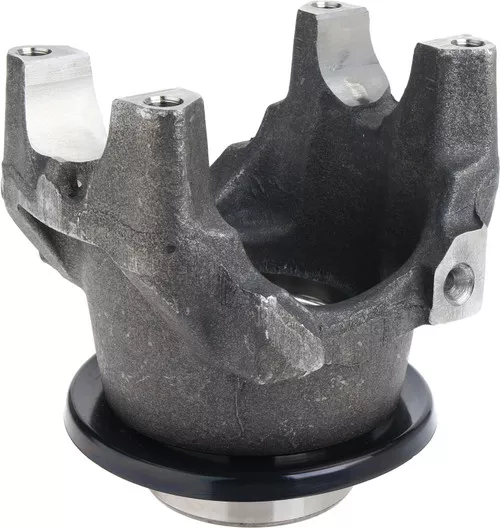

Spicer 170-4-1291-1X Spl170 Series Half Round Yoke

Description

Spicer 170-4-1291-1X Spl170 Series Half Round Yoke
170412911X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Dana Commercial Vehicle Service Parts: 170MU51P29, Dana Commercial Vehicle Service Parts: 176MU41P23, International Harvester (IHC): 170412911X, International Harvester (IHC): E170412911X, Mack: 170MU51P29, Mack: 176MU41P23, Mack: 2104-170412911X, Mack: 25020804, Mack: 25161837, Navistar: 170412911X, Navistar: DS170412911X, Navistar: E170412911X, Paccar Parts: 170-4-1291-1X, Volvo Cars: 170MU51P29, Volvo Cars: 176MU41P23, Volvo Cars: SP 170412911X, 170-4-1281-1

UPC:

00023913247720

Series:

SPL170

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

46

Involute Spline:

N

Hub Diameter R:

3.500

Length Thru Hole Q:

2.406

Yoke Style:

HR

C/L To End Hub S:

6.688

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.374

Outside Yoke Dimension (In) E:

6.456
