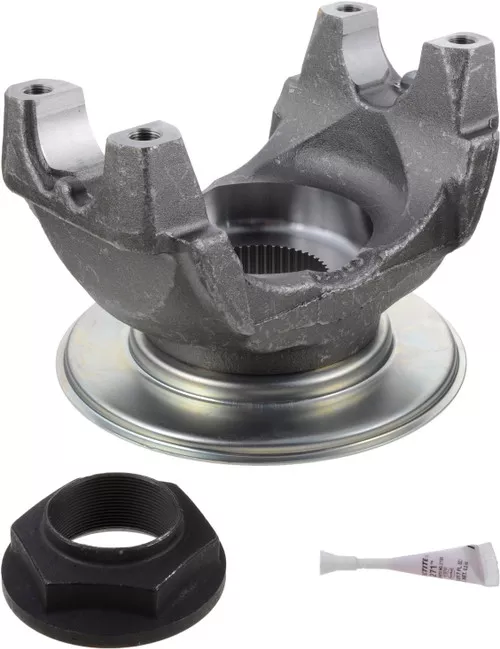

Spicer 131443K PINION SHAFT END YOKE

Description

Differential End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Applications: SPICER/EATON – D170, D190, S170, S190

Cross References:
Daimler: SP 131443K, Daimler: SP 131443KHP, Freightliner Trucks: SP 131443K, Freightliner Trucks: SP 131443KHP, International Harvester (IHC): 131443K, International Harvester (IHC): D131443K, International Harvester (IHC): E131443K, International Harvester (IHC): ETN131443K, Mack: 2719-131443K, Navistar: 131443K, Navistar: D131443K, Navistar: DS131443K, Navistar: E131443K, Navistar: ETN131443K, Paccar Parts: 131443K, Peterbilt: 1403775, Volvo Cars: SP 131443K, 6.5-4-5091-1, P131443K

UPC:

00023913217723

Series:

1810

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

49

Involute Spline:

Y

Hub Diameter R:

3.818

Length Thru Hole Q:

2.141

Yoke Style:

HR

C/L To End Hub S:

5.740

C-Bore Depth:

0.120

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.938

Major Diameter:

2.544

Outside Yoke Dimension (In) E:

7.643
