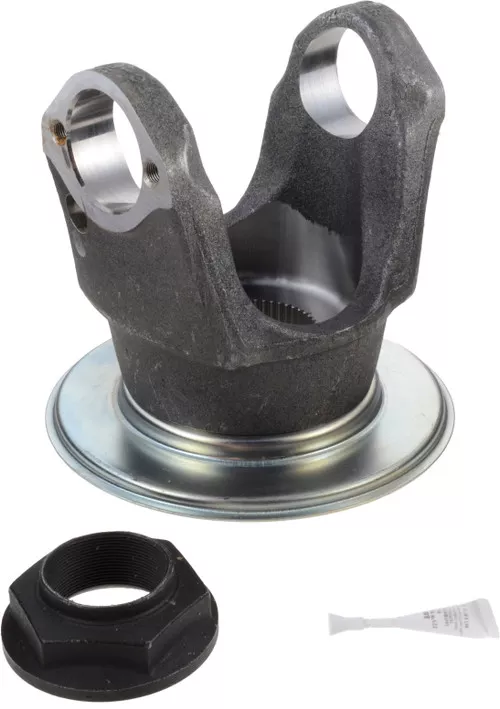

Spicer 131439K PINION SHAFT END YOKE

Description

Differential End Yoke

Demand genuine Spicer. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.
Applications: SPICER/EATON – D170, D190, S170, S190

Cross References:
Daimler: ETN 131439K, Daimler: SP 131439K, Daimler: SP 131439KHP, Freightliner Trucks: ETN 131439K, Freightliner Trucks: SP 131439KHP, International Harvester (IHC): 131439K, International Harvester (IHC): D131439K, International Harvester (IHC): E131439K, International Harvester (IHC): ETN131439K, Mack: 2719-131439K, McNeilus: 6KP566, Navistar: 131439K, Navistar: D131439K, Navistar: DS131439K, Navistar: E131439K, Navistar: ETN131439K, Paccar Parts: 131439KETN, Peterbilt: 6KP566, Volvo Cars: SP 131439K, CUP131439, P131439K, 6-4-08449X, 131439, 6408449X, 6-4-10311

UPC:

00023913216740

Series:

1710

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

49

Involute Spline:

Y

Hub Diameter R:

3.819

Length Thru Hole Q:

2.125

Yoke Style:

BP

C/L To End Hub S:

6.260

C-Bore Depth:

0.120

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

1.938

Major Diameter:

2.544

Outside Yoke Dimension (In) E:

6.094
