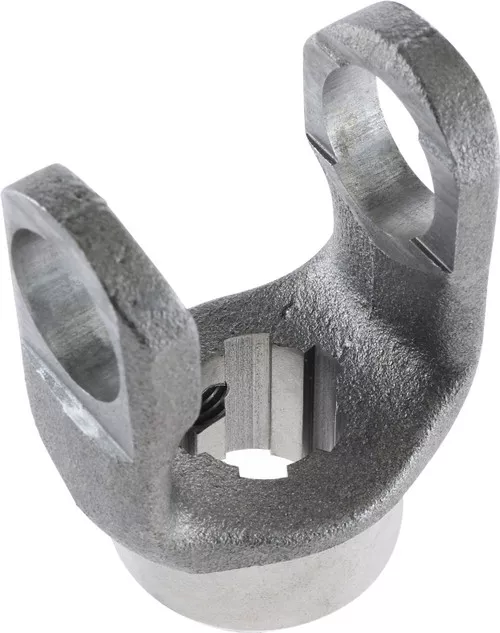

Spicer 10-4-101 End Yoke

Sale!
Spicer 10-4-101 End Yoke

Spicer 10-4-101 End Yoke

Original price was: $102.54.Current price is: $64.20.

91 in stock

SKU: DDP10-4-101 Category:

Description

Spicer ChannelAdvisor Store Description 104101
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

Cross References:
Daimler: SP 10 4 101HP, Dana Commercial Vehicle Service Parts: 2104-104101, Freightliner Trucks: SP 10 4 101HP, International Harvester (IHC): 104101, International Harvester (IHC): D104101, International Harvester (IHC): E104101, Mack: 2104-104101, Navistar: 104101, Navistar: D104101, Navistar: DS104101, Navistar: E104101, Paccar Parts: 10-4-101, UAP: 10-4-101, Volvo Cars: 2104-104101, Volvo Cars: SP 104101, P10-4-101

UPC:
00023913236526
Series:
1000
Material:
Steel
Prop 65:
No
Type:
Splined Hole
Spline Count:
6
Involute Spline:
N
Hub Diameter R:
1.625
C/L To End Hub S:
2.500
Yoke Bearing Dimension (In) D:
0.938
Set Screw Location W:
3
Major Diameter:
1.000
Set Screw Hole Diameter (In):
0.375
Inside Yoke Dimension (In) K:
1.500
