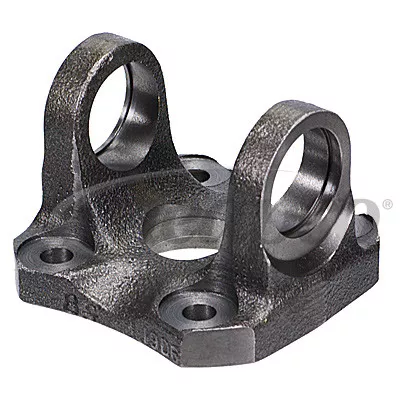

Neapco N2-2-899 1210 Conversion Flange for Nissan

Description

Neapco N2-2-899 1210 Conversion Flange for Nissan

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

N2-2-899
DL SERIES:1210
BOLT CIRCLE:2.75″
BOLT DIAMETER:.32″
BOLT HOLE QUANTITY:4
FLANGE FACE TO JOINT CENTERLINE:1.48″
JOINT ANGLE:20>br /> PILOT DIAMETER:2.25″ MALE

Cross References:
Spicer:2-2-899

UPC:

00083869014784

Bearing Type:

Outside Lock-Up

Driveline Series:

1210

Center Line Uj To Flange Face (in):

1.484

Bolt Circle (in):

2.750

Hole Dia./Thread Size (in)(mm):

0.328

Material:

Steel

Number Of Bolt Holes:

4

Pilot Dia.(in) & Type (M or F):

2.250-M

Bolt Hole Pattern:

Rectangle

Length Between Holes C:

1.768

Length Between Holes D:

2.107

Joint Angle (degrees):

20.000
