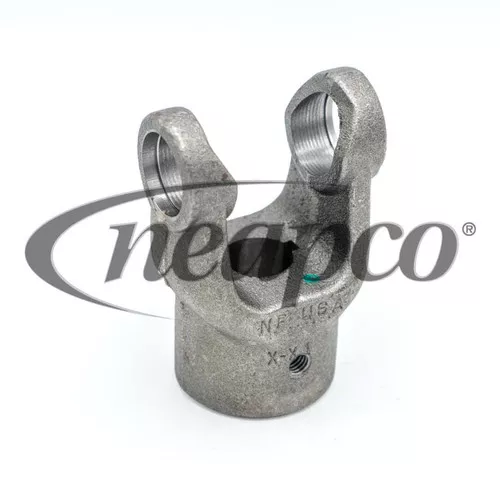

Neapco 20-9115 1″ Round Yoke

Description

Neapco 20-9115 1″ Round Yoke
209115

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

20-9115
DL SERIES:2000 L14N 14
BORE TYPE:ROUND
BORE DIAMETER:1″
CENTER LINE TO END OF HUB:3.75″
HUB DIAMETER:
KEYWAY LOCATION:EAR
KEYWAY WIDTH:.25″
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:.875″
SET SCREW HOLE SIZE:.375″ 16 THREAD
Set Screw Location:GAP
SPLINE /NO TEETH:
FITS TUBING:
Notes:

Cross References:
Precision:1300, G&G Manufacturing Co:184-1416, Rockwell International:L14SYR16-6, Parts Master:21201, Carquest by BWD:69115, Weasler:800-1416

UPC:

00083869003696

Driveline Series:

2000

Bore Size & Shape(in)(mm):

1.000 Round

Center Line To End Of Hub (in):

3.750

Set Screw Thread Size (in)(mm):

0.375-16

Bore Type:

Round

Keyway Location:

EAR

Keyway Width (in)(mm):

0.250

End Of Hub To Set Screw (in):

0.880

Set Screw Location:

GAP
