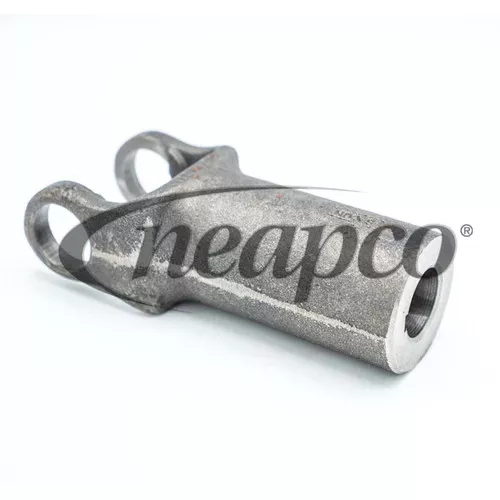

Neapco 12-1316 PTO Sleeve L12 1″

Description

Neapco 12-1316 PTO Sleeve L12 1″
121316

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

12-1316
DL SERIES:J12 1200
BORE TYPE:ROUND
BORE DIAMETER:1″
CENTER LINE TO END OF HUB:5.25″
HUB DIAMETER:
KEYWAY LOCATION:EAR
KEYWAY WIDTH:.25″
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:
SET SCREW HOLE SIZE:
Set Screw Location:
SPLINE /NO TEETH:
FITS TUBING:
Notes:PTO SLIP YOKE

Cross References:
Precision:1263, Rockwell International:L12NYR16-13, Parts Master:21116, Carquest by BWD:61255

UPC:

00083869001807

Driveline Series:

1200

Bore Size & Shape(in)(mm):

1.000 Round

Center Line To End Of Hub (in):

5.250

Set Screw Thread Size (in)(mm):

0.125-27 NPT

Bore Type:

Round

Keyway Location:

EAR

Keyway Width (in)(mm):

0.251

End Of Hub To Set Screw (in):

1.750

Set Screw Location:

GAP
