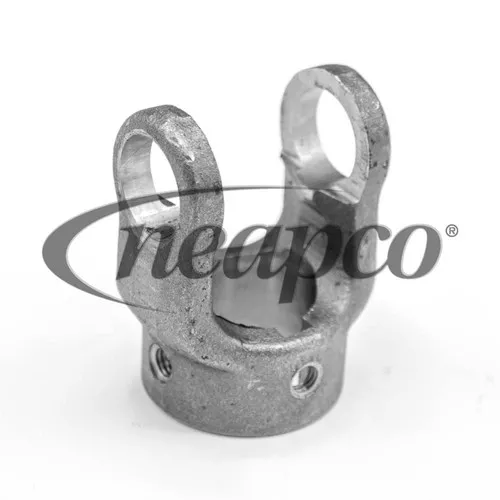

Neapco 12-1175 Yoke

Description

Neapco 12-1175 Yoke
121175

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

12-1175
DL SERIES:L12 1200
BORE TYPE:ROUND
BORE DIAMETER:1.5″
CENTER LINE TO END OF HUB:2.75″
HUB DIAMETER:
KEYWAY LOCATION:GAP
KEYWAY WIDTH:.375″
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:
SET SCREW HOLE SIZE:.375″ 16 THREAD
Set Screw Location:EAR AND GAP
SPLINE /NO TEETH:
FITS TUBING:
Notes:2 SET SCREWS

Cross References:
Precision:1230, Boston Gear:UJL24, Rockwell International:L12NYR24-7, Parts Master:21091, Carquest by BWD:61175

UPC:

00083869001739

Driveline Series:

1200

Bore Size & Shape(in)(mm):

1.500 Round

Center Line To End Of Hub (in):

2.750

Set Screw Thread Size (in)(mm):

3/8-16 UNC 2B

Bore Type:

Round

Keyway Location:

Gap

Keyway Width (in)(mm):

0.376

End Of Hub To Set Screw (in):

0.630

Set Screw Location:

Ear, Gap
