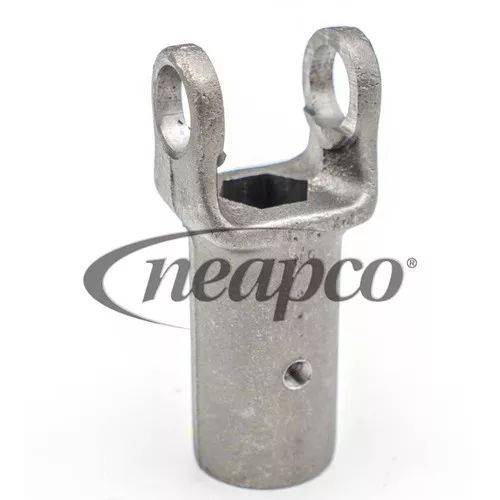

Neapco 12-1173 PTO Sleeve 1.125″ Hex L12

Description

Neapco 12-1173 PTO Sleeve 1.125″ Hex L12
121173

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

12-1173
DL SERIES:L12 1200
BORE TYPE:HEXAGON
BORE DIAMETER:1.125″
CENTER LINE TO END OF HUB:5.25″
HUB DIAMETER:
KEYWAY LOCATION:
KEYWAY WIDTH:
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:
SET SCREW HOLE SIZE:
Set Screw Location:
SPLINE /NO TEETH:
FITS TUBING:
Notes:PTO SLIP YOKE

Cross References:
Precision:1275, Rockwell International:L12NYH18-2, Parts Master:21089, Carquest by BWD:61173

UPC:

00083869001715

Driveline Series:

1200

Bore Size & Shape(in)(mm):

1.127 Hexagonal

Center Line To End Of Hub (in):

5.250

Set Screw Thread Size (in)(mm):

0.125-27 NPT

Bore Type:

Hexagon

End Of Hub To Set Screw (in):

1.750

Set Screw Location:

GAP
