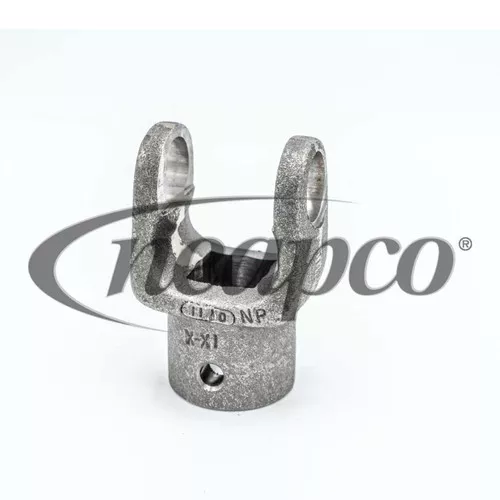

Neapco 12-1148 PTO Yoke L12 1.125″ Square

Description

Neapco 12-1148 PTO Yoke L12 1.125″ Square
121148

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

12-1148
DL SERIES:L12 1200
BORE TYPE:SQUARE
BORE DIAMETER:1.125″
CENTER LINE TO END OF HUB:3.5″
HUB DIAMETER:
KEYWAY LOCATION:
KEYWAY WIDTH:
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:
SET SCREW HOLE SIZE:
Set Screw Location:
SPLINE /NO TEETH:
FITS TUBING:
Notes:25/64 THRU DRILLED HOLE

Cross References:
Rockwell International:L12NYQ18-3, Parts Master:21105, Carquest by BWD:61148, Weasler:804-1218

UPC:

00083869001609

Driveline Series:

1200

Bore Size & Shape(in)(mm):

1.125 Square

Center Line To End Of Hub (in):

3.500

Set Screw Thread Size (in)(mm):

0.390 (Pin)

Bore Type:

Square

End Of Hub To Set Screw (in):

0.625

Set Screw Location:

GAP
