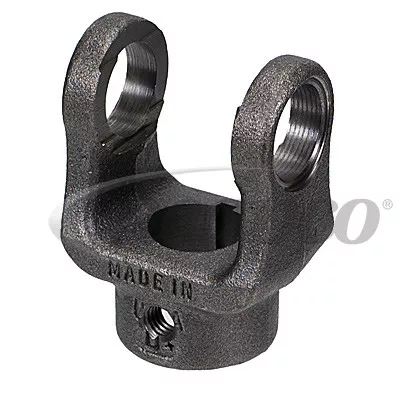

Neapco 10-0483 1″ Round Yoke

Description

Neapco 10-0483 1″ Round Yoke
100483, 10-4-83

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

10-0483
DL SERIES:1000
BORE TYPE:ROUND
BORE DIAMETER:1.00
CENTER LINE TO END OF HUB:2.5
HUB DIAMETER:1.625
KEYWAY LOCATION:GAP
KEYWAY WIDTH:.188
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:.625
SET SCREW HOLE SIZE:.375-16
Set Screw Location:GAP
SPLINE /NO TEETH:
FITS TUBING:
Notes:

Cross References:
Precision:1548, Meritor:10N483, Parts Master:21033, MOOG Driveline Products:1548, Spicer:10-4-83, Carquest by BWD:100-83

UPC:

00083869002200

Driveline Series:

1000

Bore Size & Shape(in)(mm):

1.000 Round

Center Line To End Of Hub (in):

2.500

Set Screw Thread Size (in)(mm):

3/8-16 UNC 2B

Bore Type:

Round

Keyway Location:

Gap

Keyway Width (in)(mm):

0.188

End Of Hub To Set Screw (in):

0.500

Hub Diameter (in):

1.625

Set Screw Location:

Gap
