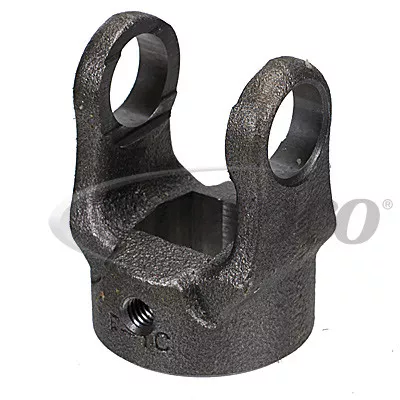

Neapco 10-0452 1″ Square PTO Yoke

Description

Neapco 10-0452 1″ Square PTO Yoke
100452, 10-4-52

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

10-0452
DL SERIES:1000
BORE TYPE:SQUARE
BORE DIAMETER:1
CENTER LINE TO END OF HUB:2.25
HUB DIAMETER:2.25
KEYWAY LOCATION:
KEYWAY WIDTH:
LENGTH THRU BORE:
SET SCREW DISTANCE TO END OF HUB:.625
SET SCREW HOLE SIZE:.375-16
Set Screw Location:GAP
SPLINE /NO TEETH:
FITS TUBING:
Notes:

Cross References:
Precision:1539, Meritor:10N452, Parts Master:21009, Parts Master:21030, MOOG Driveline Products:1539, Spicer:10-4-52, Carquest by BWD:65193, Weasler:804-0516, Weasler:804-1016

UPC:

00083869002163

Driveline Series:

1000

Bore Size & Shape(in)(mm):

1.000 Square

Center Line To End Of Hub (in):

2.500

Set Screw Thread Size (in)(mm):

0.375-16

Bore Type:

Square

End Of Hub To Set Screw (in):

0.625

Hub Diameter (in):

2.250

Set Screw Location:

GAP
