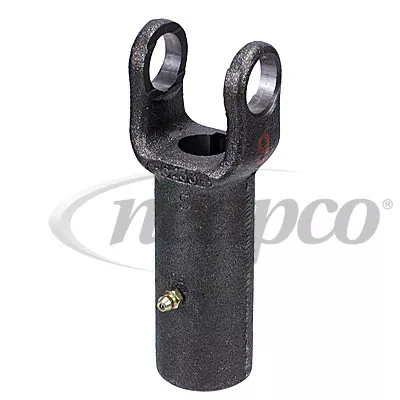

Neapco 10-0333 .875 Round PTO Sleeve Yoke

Description

Neapco 10-0333 .875 Round PTO Sleeve Yoke

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers
Please use the downloadable catalog to select your Neapco PTO driveline part numbers

10-0333
BORE DIAMETER:.875″
BORE TYPE:ROUND
DL SERIES:1000
JOINT ANGLE:>br /> CENTERLINE TO END OF HUB:5.5″
DIMENSION BETWEEN EARS:
DIMENSION OUTSIDE EARS:
DRILLED OR THREADED:
DUST CAP PART NUMBER:
HUB DIAMETER:
SPLINE COUNT:
SPLINE DIAMETER:
NOTES:

Cross References:
Precision:1752, Meritor:10N333X, Parts Master:20635, Parts Master:21317, MOOG Driveline Products:1752, Spicer:10-3-33X, Carquest by BWD:101-33, Carquest by BWD:65184, Weasler:810-1014

UPC:

00083869002040

Driveline Series:

1000

Lube Fitting Location:

GAP

Bore Size & Shape(in)(mm):

0.875 Round

Center Line To End Of Hub (in):

5.500

Set Screw Thread Size (in)(mm):

3/8-16 UNC 2B

Bore Type:

Round

Lube Fitting Distance To End Of Hub (in):

1.750

Keyway Location:

Gap

Keyway Width (in)(mm):

0.250

End Of Hub To Set Screw (in):

1.750

Hub Diameter (in):

1.625

Set Screw Location:

Gap
