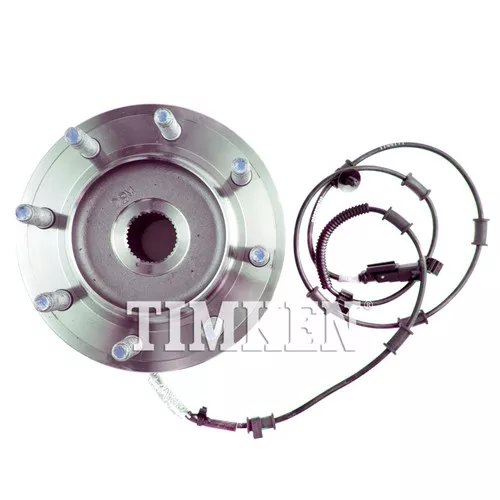

HA590628 Timken Hub Unit Bearing

Description

Hub Unit Bearing Assemblies: Preset, Pre-Greased And Pre-Sealed

Application: Ram (18-13)

Cross References:
CHRYSLER CORP.: 68185437AC, CHRYSLER CORP.: 68185437AD, FEDERAL-MOGUL: 515162, SKF: BR930553

UPC:

085706046262

Mfr Part Number:

HA590628

ABS Cable / Connector (CA / CO):

CA

ABS Type – Tone Ring / Sensor / Encoder (T/S/E):

S

ABS/Non-ABS (Y/N):

Y

Bearing Type:

TAPER

Bolt Circle Diameter B (in.):

8.06

Bolt Circle Diameter B (mm):

165

Bolt Circle Diameter H (in.):

6.49

Bolt Circle Diameter H (mm):

164.9

Bolt Quantity I:

(4)

Bolt Size I (in.):

.496

Brake Pilot Dia E (in.):

4.76

Brake Pilot Dia E (mm):

120.93

Driven – Non Driven (D / N):

D

Flange ():

(2)

Flange Diameter A (mm):

204.75

Flange Offset F (in.):

2.22

Flange Offset F (mm):

56.39

Flange Shape J:

SQUARE

Hub Pilot Dia G (in.):

4.72

Hub Pilot Dia G (mm):

119.9

Lug Bolts/Bolt Holes ():

Y

Roll Form (Y):

Y

Spline Quantity:

(35)

Wheel Pilot Dia D (mm):

122.85

Wheel Stud Qty:

8

Wheel Stud Size (in.):

.542
