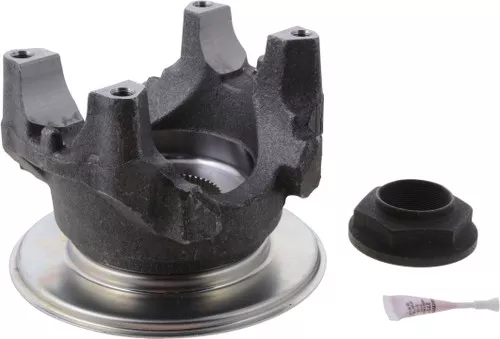

131433K Eaton Spicer SPL170 Series Half Round Yoke and Nut Kit

Description

131433K Eaton Spicer SPL170 Series Half Round Yoke and Nut Kit
131095, 5008458,170-4-08458-1X

Cross References:
Daimler: SP 131433K, Daimler: SP 131433KHP, Freightliner Trucks: SP 131433KHP, International Harvester (IHC): 131433K, International Harvester (IHC): 3603839C91, International Harvester (IHC): D131433K, Mack: 2719-131433K, McNeilus: 1398294, Navistar: 131433K, Navistar: 3603839C91, Navistar: D131433K, Navistar: DS131433K, Navistar: E131433K, Paccar Parts: 131433KETN, Peterbilt: 1398294, Volvo Cars: 20739789, Volvo Cars: SP 131433K, P131433K, 170-4-1891-1, CUP131433, 131433

UPC:

00023913258788

Series:

SPL170

Material:

Steel

Prop 65:

No

Type:

Splined Hole

Spline Count:

49

Involute Spline:

Y

Hub Diameter R:

3.818

Length Thru Hole Q:

2.125

Yoke Style:

HR

C/L To End Hub S:

5.531

C-Bore Depth:

0.120

Assembly:

Y

Includes Slinger/Plug:

Y

Yoke Bearing Dimension (In) D:

2.166

Major Diameter:

2.544

Outside Yoke Dimension (In) E:

6.456
